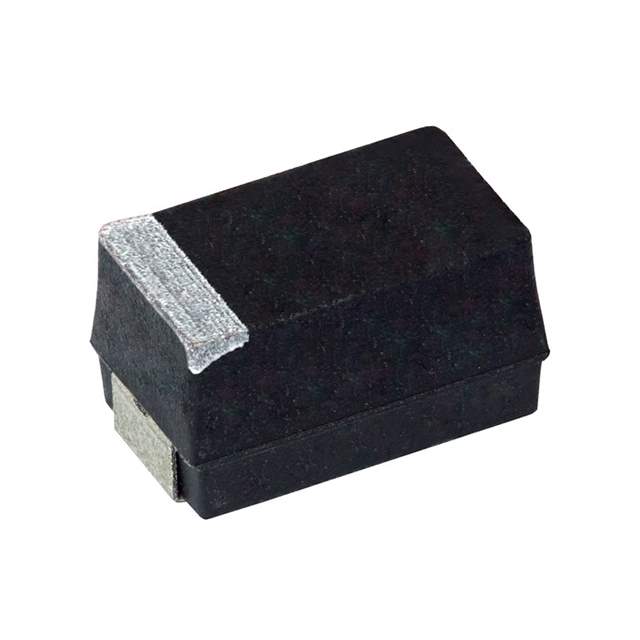

Same model may have multiple batches, images only for reference.

593D226X9025D2TE3

Name: 593D226X9025D2TE3
Brand: Vishay
SKU: 420563
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	593D226X9025D2TE3
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	CAP TANT 22UF 25V 10% 2917
Datasheet	593D226X9025D2TE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Capacitance	22μF
Tolerance	±10%
Voltage Rating	25V
Type	Molded
ESR	200 mOhm
Temperature Range - Operating	-55°C to 125°C
Mounting	SMD (SMT)
Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.122" (3.10mm)
Manufacturer Size Code	D
Features	General Purpose
Win Source Part Number	1006213-593D226X9025D2TE3
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 593D226X9025D2TE3 CAD Model

Alternative Products

Description

The Vishay 1006213-593D226X9025D2TE3 is a molded general-purpose capacitor with a voltage rating of 25V and a capacitance of 22μF. Vishay.

Voltage Rating: 25V
Capacitance: 22μF
Tolerance: ±10%
ESR: 200 mOhm
Package Size Code: D
Temperature Range: -55°C to 125°C
Packaging: Reel
Height: 0.122" (3.10mm)
Supply and Demand Status: Limited
