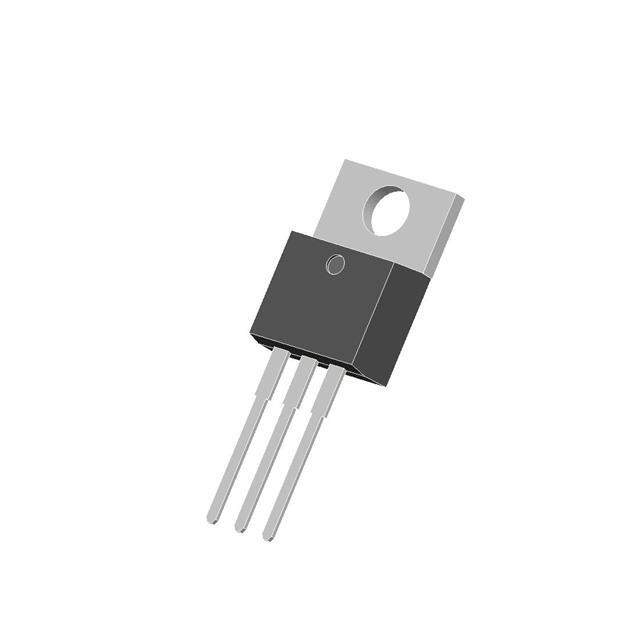

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 45V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Maximum) at If 640mV at 10A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 2mA at 45V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package TO-220-3
Supplier Device Package TO-220AB
Family Part Number 20CTQ045
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1122910-20CTQ045
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 20CTQ045 CAD Model

Description

The Vishay Semiconductor Diodes Division 20CTQ045 is a Schottky type diode that is designed for discrete semiconductor products. The packaging is tube, and it is mounted through hole. The speed is fast recovery >200mA (Io), and the diode configuration is 1 pair common cathode. The operating temperature range is -55°C to 175°C. The current average rectified is 10A, and the voltage DC reverse is 45V. The supplier device package is TO-220AB, and the base product number is 20CTQ045. The manufacturer's homepage is www.microsemi.com.
