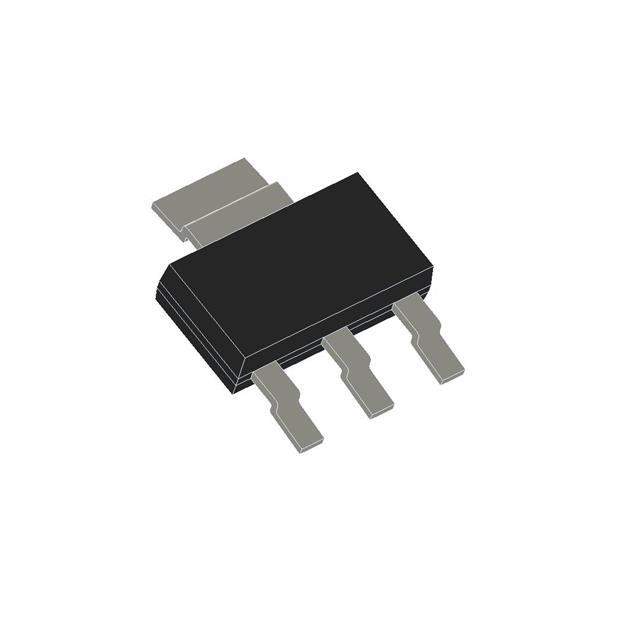

20CJQ045 Real Image
Same model may have multiple batches, images only for reference.

20CJQ045

Part No 20CJQ045
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 45V SOT223
Datasheet
20CJQ045 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) (per Diode) 1A
Voltage - Forward (Vf) (Max) @ If 540mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 100μA @ 45V
Operating Temperature - Junction -55°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-223
Win Source Part Number 125500-20CJQ045
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 20CJQ045 CAD Model

Description

Description

The 20CJQ045 Schottky rectifier offers industry-leading energy efficiency and a low forward voltage drop, making it an excellent choice for today's component designers in need of optimal power handling solutions.

Features and Benefits

  • Ultra-low forward voltage for efficient power use.
  • Great heat dissipation ability for enhanced reliability.
  • Compatible with high-density assembly techniques.
  • Rugged package ensures dependability in tough conditions from -55°C to +175°C.

Applications

  • Telecommunication power units
  • Industrial power supplies
  • Energy Systems (solar, wind)
  • Power adapters and chargers
