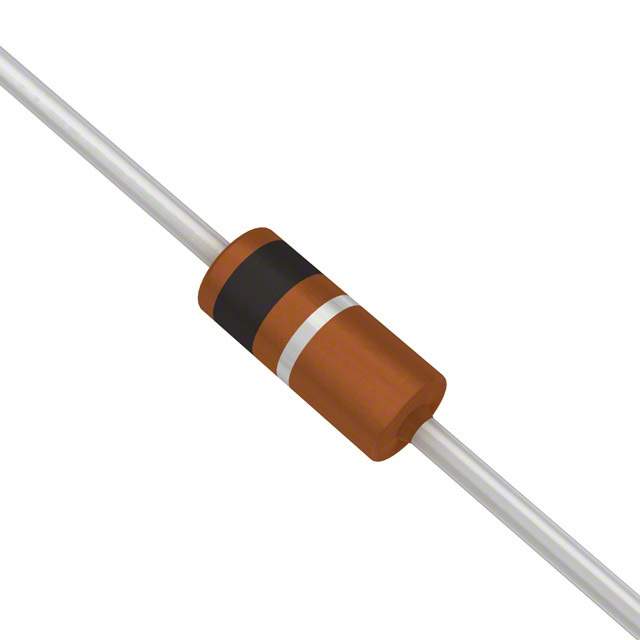

The 1N5246B-TAP is a Zener diode manufactured by Vishay. This diode is designed to maintain a constant voltage across its terminals when reverse biased, making it suitable for voltage regulation, voltage reference, and surge protection applications. The 'TAP' suffix usually indicates a specific packaging or lead configuration.

Applications

• Voltage Regulation: Used in voltage regulators to provide a stable output voltage.
• Voltage Reference: Employed as a voltage reference in precision circuits and measurement equipment.
• Surge Protection: Integrated into circuits to protect against voltage surges and transient events.
• Clipping Circuits: Used in clipping circuits to limit voltage levels and protect sensitive components.
• Overvoltage Protection: Found in overvoltage protection circuits to prevent damage from excessive voltage.

Features

• Precise Zener Voltage: Offers a precise Zener voltage with tight tolerance.
• Low Dynamic Impedance: Features a low dynamic impedance, ensuring stable voltage regulation.
• High Reliability: Designed for high reliability and long operational life.
• Small Package Size: Available in a small package size for easy integration into compact designs.
• RoHS Compliant: Compliant with RoHS standards, ensuring environmental friendliness.

Benefits

• Stable Voltage Regulation: Provides stable voltage regulation, ensuring consistent performance of connected devices.
• Precise Voltage Reference: Offers a precise voltage reference for accurate measurements and calibrations.
• Protection Against Surges: Protects circuits from voltage surges and transient events.
• Easy Integration: Simplifies circuit design and reduces assembly time due to its small size and ease of use.
• Environmental Compliance: Meets environmental standards with its RoHS compliance.

Additional Details

The Vishay 1N5246B-TAP has a Zener voltage (VZ) of 16V with a tolerance of ±5%. Its power dissipation is typically 500mW. The dynamic impedance (ZZT) is a critical parameter, and typically falls in the range of a few ohms to tens of ohms, influencing its voltage regulation capability. The reverse leakage current (IR) is generally low, in the microampere range. It commonly comes in a DO-35 or similar axial-lead package. The operating temperature range is typically -65°C to +175°C. The 'TAP' likely indicates tape and reel packaging for automated assembly. Ensure that the diode's power dissipation rating is sufficient for the application to prevent overheating and potential failure.
