Same model may have multiple batches, images only for reference.

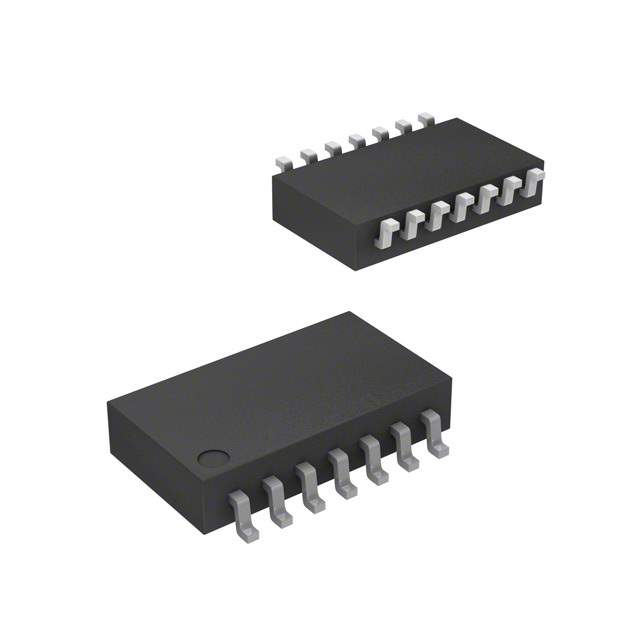

4814P-2-153LF Real Image
Same model may have multiple batches, images only for reference.

4814P-2-153LF

Part No 4814P-2-153LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 13 RES 15K OHM 14SOIC / 15k Ohm ±2% 80mW Power Per Element Bussed 13 Resistor Network/Array ±100ppm/°C 14-SOIC (0.220", 5.59mm Width)
Datasheet
4814P-2-153LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4800P
Package Tape & Reel
Circuit Type Bussed
Resistance (Ohms) 15k
Tolerance ±2%
Number of Resistors 13
Number of Pins 14
Power Per Element 80mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200
Mounting Type Surface Mount
Package / Case 14-SOIC (0.220", 5.59mm Width)
Supplier Device Package 14-SOM
Size / Dimension 0.390" L x 0.220" W (9.91mm x 5.59mm)
Height - Seated (Max) 0.094" (2.40mm)
Base Product Number 4814P
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0010
California Prop 65 Warning Information
Win Source Part Number 1337698-4814P-2-153LF
Ultra Librarian 3D Model Ultra Librarian 4814P-2-153LF CAD Model

Description

The Bourns Inc. 4800P is a resistor network that belongs to the resistors - resistor networks, arrays category.

  • Circuit Type: Bussed
  • Pins: 14
  • Package: 14-SOIC (0.220", 5.59mm width)
  • Package Dimensions: 0.390" L x 0.220" W (9.91mm x 5.59mm)
  • Packaging: Tape & Reel
  • Resistance: 15k Ohms
  • Tolerance: ±2%
  • Power per Element: 80mW
  • Temperature Coefficient: ±100ppm/°C
  • Number of Resistors: 13
  • Ideal for: Various applications, particularly in the automotive industry
