Same model may have multiple batches, images only for reference.

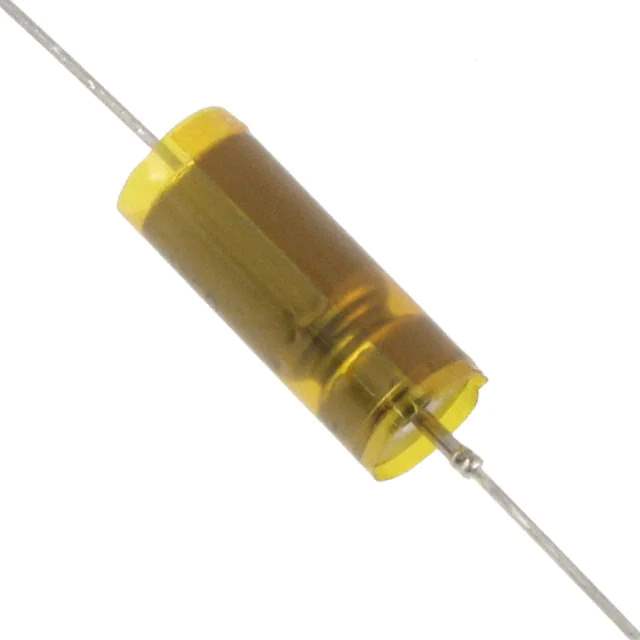

135D146X9125F2 Real Image
Same model may have multiple batches, images only for reference.

135D146X9125F2

Part No 135D146X9125F2
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 14UF 10% 125V AXIAL
Datasheet
135D146X9125F2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr Vishay
Series 135D
Package Tray
Product Status Active
Capacitance 14 µF
Tolerance ±10%
Voltage - Rated 125 V
Type Hermetically Sealed
ESR (Equivalent Series Resistance) 5.7Ohm
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Axial
Size / Dimension 0.296" Dia x 0.641" L (7.52mm x 16.28mm)
Manufacturer Size Code F
Features Wet Tantalum
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0020
Win Source Part Number 853952-135D146X9125F2
Ultra Librarian 3D Model Ultra Librarian 135D146X9125F2 CAD Model

Description

The 135D146X9125F2 is a hermetically sealed wet tantalum capacitor designed for use in various applications such as power supplies, aerospace systems, and military equipment.

  • Capacitance: 14 µF
  • Capacitance Tolerance: ±10%
  • Voltage Rating: 125V
  • ESR: 5.7Ohm
  • Size: 0.296" diameter x 0.641" length
  • Temperature Range: -55°C to 125°C
  • Package: Axial
  • Mounting Type: Through-Hole
  • Product Status: Active
  • Manufacturer: Vishay
