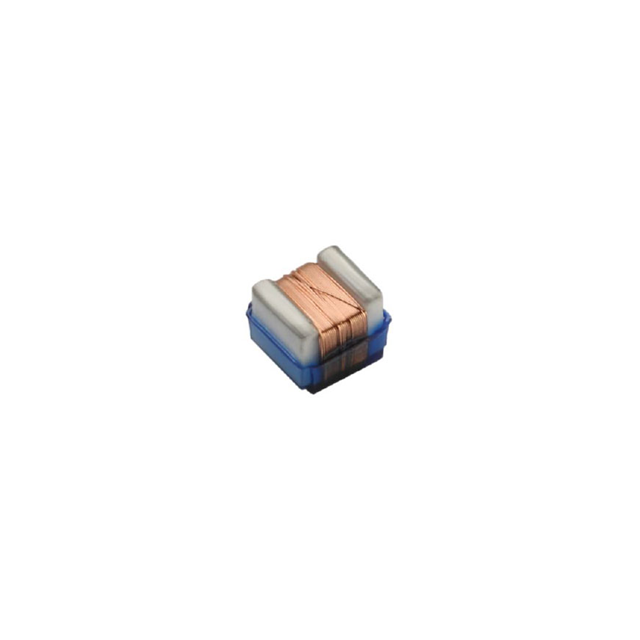

WL05JT7N5 Real Image
Same model may have multiple batches, images only for reference.

WL05JT7N5

Part No WL05JT7N5
Manufacturer Viking Tech
Catalog Fixed Inductors
Description FIXED IND 7.5NH 600MA 140MOHM SM / 7.5 nH Unshielded Drum Core, Wirewound Inductor 600 mA 140mOhm Max 0805 (2012 Metric)
Datasheet
WL05JT7N5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Viking Tech
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 7.5 nH
Tolerance ±5%
Current Rating (Amps) 600 mA
Shielding Unshielded
DC Resistance (DCR) 140mOhm Max
Q @ Freq 50 @ 1GHz
Frequency - Self Resonant 4.5GHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 250 MHz
Mounting Surface Mount
Case / Package 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.090" L x 0.068" W (2.29mm x 1.73mm)
Height - Seated (Max) 0.060" (1.52mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 5833.40.0000
Other Part Number 2577-WL05JT7N5TR
Standard Package 2,000
Win Source Part Number 1329224-WL05JT7N5
Ultra Librarian 3D Model Ultra Librarian WL05JT7N5 CAD Model

Description

The Viking Tech 1329224-WL05JT7N5 is a surface mount inductor with a drum core and wire wound type, and an unshielded shielding.

  • Size / Dimension: 0.090" L x 0.068" W (2.29mm x 1.73mm)
  • Inductance: 7.5 nH
  • Tolerance: ±5%
  • DC Resistance (DCR): 140mOhm Max
  • Frequency Self-Resonant: 4.5GHz
  • Q @ Freq: 50 @ 1GHz
  • Temperature Range: -40°C ~ 125°C
  • AEC-Q200 Rated: Yes
