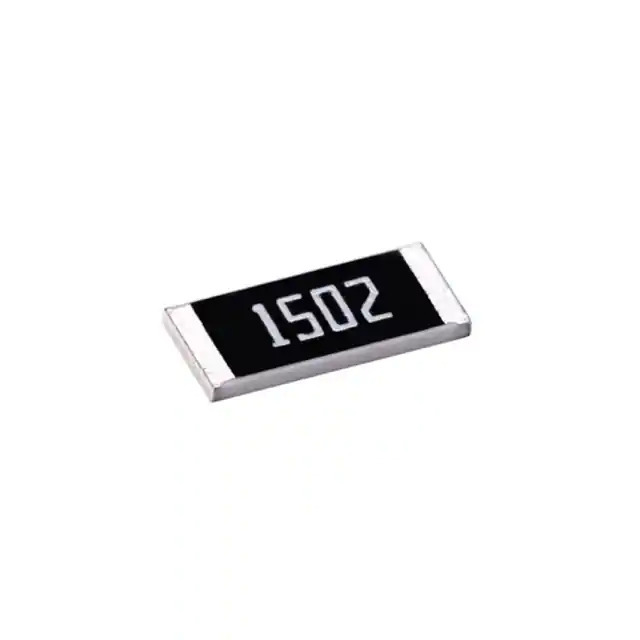

Same model may have multiple batches, images only for reference.
CR-02JL6----1K Viking Tech
Same model may have multiple batches, images only for reference.

CR-02JL6----1K

Part No CR-02JL6----1K
Manufacturer Viking Tech
Catalog Chip Resistor - Surface Mount
Description RES 1K OHM 5% 1/16W 0402
Datasheet
CR-02JL6----1K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Viking Tech
Series CR
Package Tape & Reel
Product Status Active
Resistance 1 kOhms
Tolerance ±5%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Features -
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Ratings -
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 5833.40.0000
Win Source Part Number 1373524-CR-02JL6----1K
Ultra Librarian 3D Model Ultra Librarian CR-02JL6----1K CAD Model

Description

The Viking Tech CR series chip resistor is a surface mount resistor with a resistance of 1 kOhms and a power rating of 0.063W.

  • Series: CR
  • Resistance: 1 kOhms
  • Power (Watts): 0.063W
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Composition: Thick Film
  • Mounting Type: Surface Mount
  • Package / Case: 0402 (1005 Metric)
  • Size / Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height - Seated (Max): 0.016" (0.40mm)
  • Packaging: Tape & Reel (TR)
  • Temperature Range: -55°C ~ 155°C
