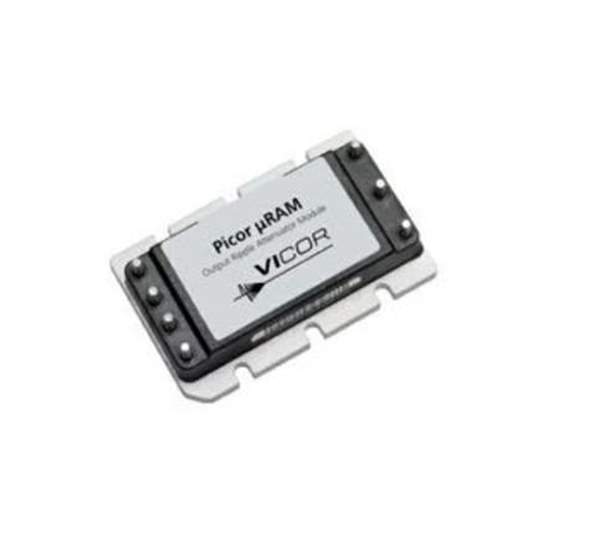

URAM2H22 Vicor Corporation
Same model may have multiple batches, images only for reference.

URAM2H22

Part No URAM2H22
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount Accessories
Description URAM OUTPUT ATTENUATION MODULE
Datasheet
URAM2H22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount -Board Mount Power Supply Accessories
Manufacturer Vicor Corporation
Packaging  Bulk
Part Status Active
Accessory Type Output Ripple Attenuator
For Use With/Related Products VICOR VI-200, VI-J00, Maxi, Mini, Micro
Filter Type Active and Passive Filter
Voltage Rating 3 VDC to 30 VDC
Current Rating 20 A
Mounting Style Through Hole
Ultra Librarian 3D Model Ultra Librarian URAM2H22 CAD Model

Description

The Vicor MicroRAM output ripple attenuation module combines both active and passive filtering to achieve greater than 40dB of noise attenuation from 1.1kHz to 1MHz. The lower frequency limit can be extended down to 100Hz, with greater than 40dB of attenuation, with the addition of a single external capacitor. The MicroRAM operates over a range of 3 – 30VDC, is available in either 20 or 30A models and is compatible with most manufacturers switching converters including all Vicor DC-DC converter models.
