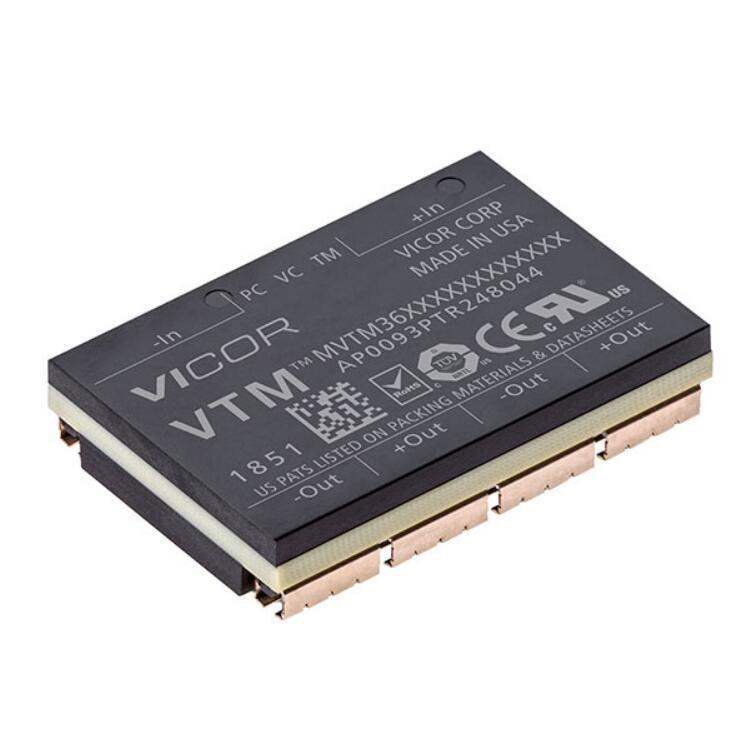

MVTM36BF072M017A00

Part No MVTM36BF072M017A00
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 7.2V 150W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203449-MVTM36BF072M017A00
Win Source Part Number Cross
Manufacturer Vicor Corporation
Category Power Supplies - Board Mount DC DC Converters
Series MVTM36 (150W)
Package Bulk
Product Status Active
Type Voltage Transformation Module
Voltage - Input (Min) 26V
Voltage - Input (Max) 50V
Voltage - Output 1 7.2V
Ultra Librarian 3D Model Ultra Librarian MVTM36BF072M017A00 CAD Model

Description

The VI Chip® current multiplier is a high‑efficiency Sine Amplitude Converter™ (SAC™) operating from a 26 to 50VDC primary bus to deliver an isolated output. The Sine Amplitude Converter offers a low AC impedance beyond the bandwidth of most downstream regulators, which means that capacitance normally at the load can be located at the input to the Sine Amplitude Converter. This allows for a reduction in point‑of‑load capacitance of typically >100x which results in a saving of board area, materials and total system cost. The VTM current multiplier is provided in a VI Chip package compatible with standard pick-and-place and surface mount assembly processes. The co-molded VI Chip package provides enhanced thermal management due to large thermal interface area and superior thermal conductivity. With high conversion efficiency the VTM current multiplier increases overall system efficiency and lowers operating costs compared to conventional approaches. The VTM current multiplier enables the utilization of Factorized Power Architecture™ providing efficiency and size benefits by lowering conversion and distribution losses and promoting high density point‑of‑load conversion.
