Same model may have multiple batches, images only for reference.

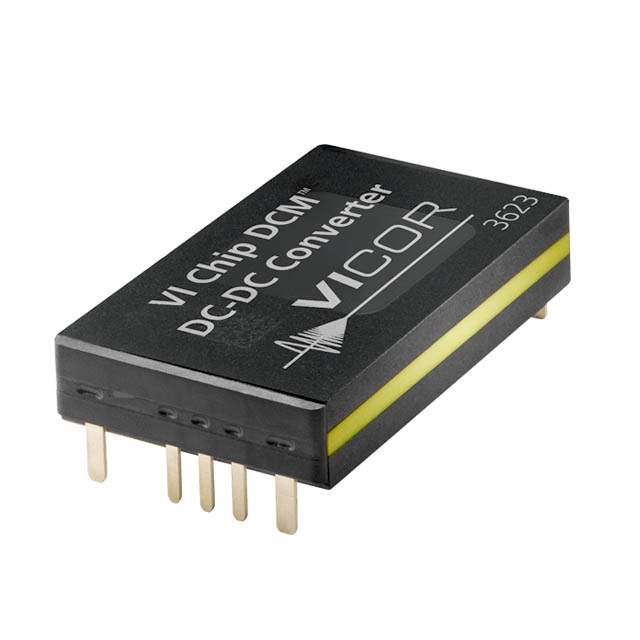

DCM24AP120M320A50 Real Image
Same model may have multiple batches, images only for reference.

DCM24AP120M320A50

Part No DCM24AP120M320A50
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 320W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Features Isolated Module DC DC Converter Output 12V - - 26.67A 18V - 36V Input
Manufacturer Vicor Corporation
Series VI Chip® DCM® (320W)
Package Tray
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole
Package 9-DIP Module
Family Name DCM24
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1102-5820, DCM24AP120M320A50-ND
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916808-DCM24AP120M320A50
Ultra Librarian 3D Model Ultra Librarian DCM24AP120M320A50 CAD Model

Description

The Vicor Corporation DCM24AP120M320A50 is an isolated module DC DC converter with a maximum output of 12V and 26.67A and 18V and 36V input.

  • Output Voltage: 12V
  • Output Current: 26.67A
  • Input Voltage Range: 18V to 36V
  • Series: VI Chip DCM (320W)
  • Package: 9-DIP module
  • Operating Temperature Range: -55°C to 125°C
  • Market Availability: Open market
  • Package Type: Tray
  • ECCN: EAR99
  • REACH Compliance: Unaffected
  • HTSUS: 8504.40.9580
  • Series Family: DCM24 series
