Same model may have multiple batches, images only for reference.

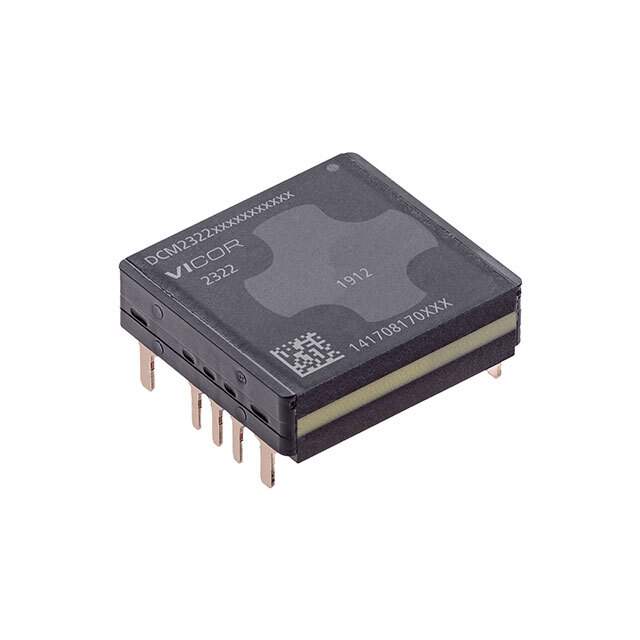

DCM2322TA5N13A2T60 Real Image
Same model may have multiple batches, images only for reference.

DCM2322TA5N13A2T60

Part No DCM2322TA5N13A2T60
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 120W / Isolated Module DC DC Converter 1 Output 12V 10A 43V - 154V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Vicor Corporation
Series VI Chip® DCM®
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 43V
Voltage - Input (Max) 154V
Voltage - Output 1 12V
Current - Output (Max) 10A
Power (Watts) 120 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Adjustable Output
Temperature Range - Operating -40°C ~ 125°C
Efficiency 93%
Mounting Type Through Hole
Package / Case 9-DIP Module
Size / Dimension 0.98" L x 0.90" W x 0.28" H (24.8mm x 22.8mm x 7.2mm)
Approval Agency CE, cTUVus, cURus
Base Product Number DCM2322
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1339109-DCM2322TA5N13A2T60
Ultra Librarian 3D Model Ultra Librarian DCM2322TA5N13A2T60 CAD Model

Description

The VI Chip DCM is an isolated module DC-DC converter with an adjustable output feature.

  • Type: isolated module DC-DC converter
  • Feature: adjustable output
  • Power: 120 watts
  • Voltage Isolation: 3 kV
  • Output Current: 10A
  • Input Voltage: 43V to 154V
  • Output Voltage: 12V
  • Efficiency: 93%
  • Mounting Type: through-hole
  • Package: 9-DIP module
  • Application: ITE (Commercial)
  • Temperature Range: -40°C to 125°C
  • Part Number: DCM2322TA5N13A2T60
  • Packaging: tray
  • Approvals: CE, cTUVus, and cURus
  • Manufacturer: Vicor Corporation
