T60405-R6123-X220 VACUUMSCHMELZE – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

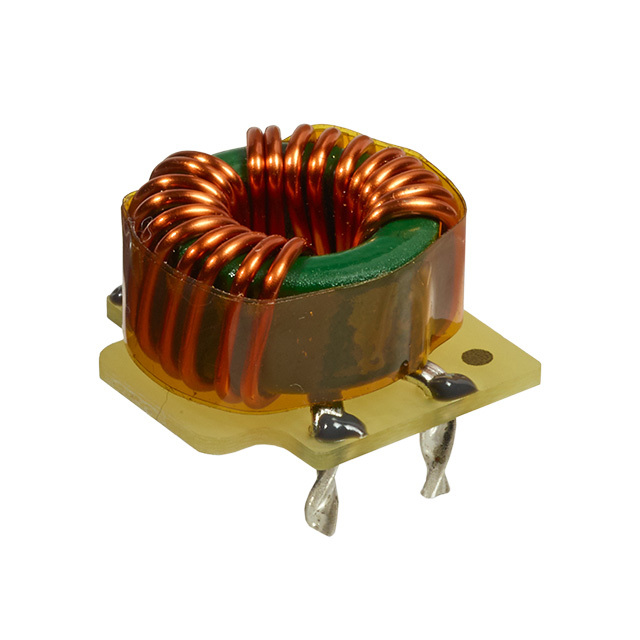

T60405-R6123-X220

Part No T60405-R6123-X220
Manufacturer VACUUMSCHMELZE
Catalog Common Mode Chokes
Description CMC 470UH 35MA 2LN 500 OHM TH
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Number of Lines 2
Impedance @ Frequency 500 Ohms @ 100 kHz
Inductance @ Frequency 470 µH @ 100 kHz
Current Rating (Max) 35mA
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Through Hole
Size / Dimension 1.378" Dia (35.00mm)
Height (Max) 0.937" (23.80mm)
Case / Package Horizontal, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530682-T60405-R6123-X220
Ultra Librarian 3D Model Ultra Librarian T60405-R6123-X220 CAD Model
