Same model may have multiple batches, images only for reference.

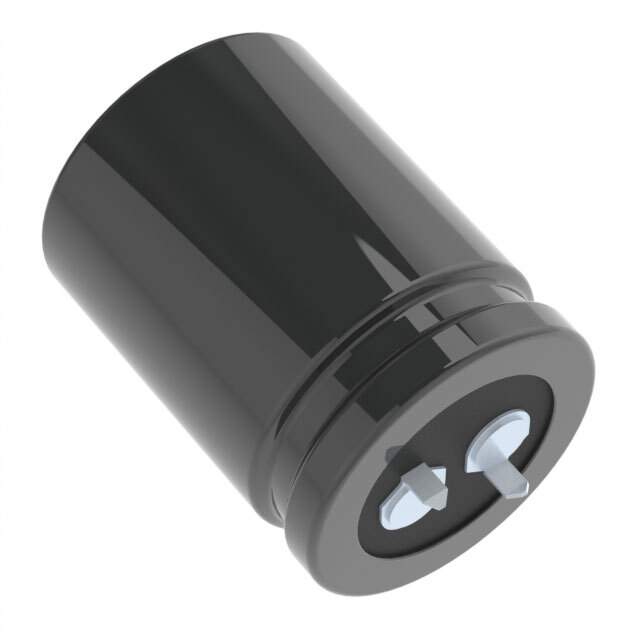

SMQ350VS561M30X40T2 Real Image
Same model may have multiple batches, images only for reference.

SMQ350VS561M30X40T2

Part No SMQ350VS561M30X40T2
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Datasheet
SMQ350VS561M30X40T2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series SMQ
Package Tray
Product Status Obsolete
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 350 V
ESR (Equivalent Series Resistance) 444mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -25°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.6 A @ 120 Hz
Ripple Current @ High Frequency 3.718 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.575" (40.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1307258-SMQ350VS561M30X40T2
Ultra Librarian 3D Model Ultra Librarian SMQ350VS561M30X40T2 CAD Model

Description

The SMQ series aluminum electrolytic capacitor from United Chemi-Con is a reliable and durable electronic component. United Chemi-Con

  • Capacitance: 560 µF
  • Voltage Rating: 350 V
  • ESR: 444mOhm @ 120Hz
  • Lifetime: 2000 Hrs @ 85°C
  • Polarization: Polarized
  • Ripple Current (Low Frequency): 2.6 A @ 120 Hz
  • Ripple Current (High Frequency): 3.718 A @ 50 kHz
  • Application: General-Purpose
