Same model may have multiple batches, images only for reference.

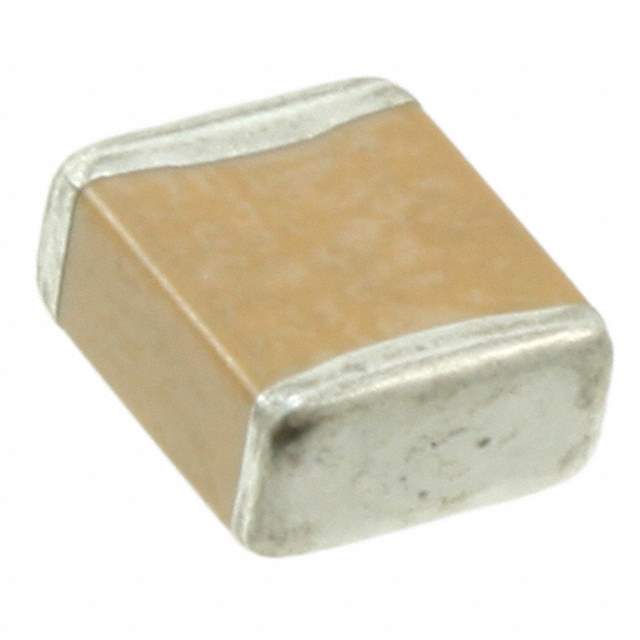

KTS500B156M55N0T00 Real Image
Same model may have multiple batches, images only for reference.

KTS500B156M55N0T00

Part No KTS500B156M55N0T00
Manufacturer United Chemi-Con
Catalog Ceramic Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr United Chemi-Con
Series NTS
Package Tape & Reel
Capacitance 15 µF
Tolerance ±20%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Mounting Type Surface Mount, MLCC
Package / Case 2220 (5750 Metric)
Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Thickness (Max) 0.110" (2.80mm)
Other Names 565-3335-1,565-3335-2,Q7130703,KTS500B156M55N0T00,565-3335-6,KTS500B156M55N0T00L
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1302799-KTS500B156M55N0T00
Ultra Librarian 3D Model Ultra Librarian KTS500B156M55N0T00 CAD Model

Description

The KTS500B156M55N0T00 is a ceramic capacitor with a capacitance of 15 µF and a voltage rating of 50V.

  • Capacitance: 15 µF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • Temperature Coefficient: X7R
  • Series: NTS
  • Package: 2220 (5750 Metric)
  • Application: Automotive
  • AEC-Q200: Yes
  • Thickness: 0.110" (2.80mm)
  • Dimension: 0.224" L x 0.197" W (5.70mm x 5.00mm)
  • Mounting: Surface Mount, MLCC
  • Packaging: Tape and Reel
  • Manufacturer: United Chemi-Con
  • REACH: Compliant
  • ECCN: Compliant
