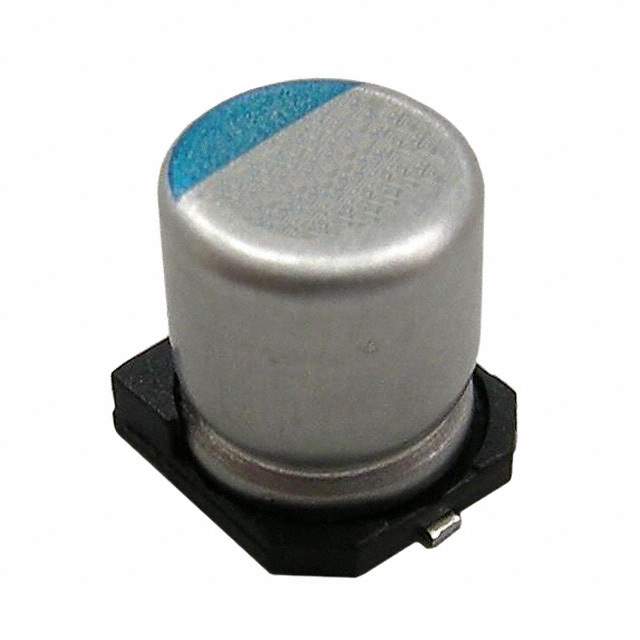

HHXD250ARA101MF80G Real Image
Same model may have multiple batches, images only for reference.

HHXD250ARA101MF80G

Part No HHXD250ARA101MF80G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM HYBRD 100UF 20% 25V SMD / 100 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series HXD
Package Tape & Reel
Type Hybrid
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 30mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 200 mA @ 120 Hz
Ripple Current @ High Frequency 2 A @ 100 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1348621-HHXD250ARA101MF80G
Ultra Librarian 3D Model Ultra Librarian HHXD250ARA101MF80G CAD Model

Description

The HXD series hybrid aluminum polymer capacitor from United Chemi-Con is a high-quality capacitor designed for automotive applications.

  • Capacitance: 100 µF
  • Rated Voltage: 25 V
  • Mounting Type: Surface Mount
  • Package: Radial, Can-SMD
  • Standard Package: 900
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 30mOhm
  • Lifetime: 5000 hours @ 105°C
  • Polarized: Yes
  • Ripple Current: 200 mA @ low frequency, 2 A @ high frequency
