Same model may have multiple batches, images only for reference.

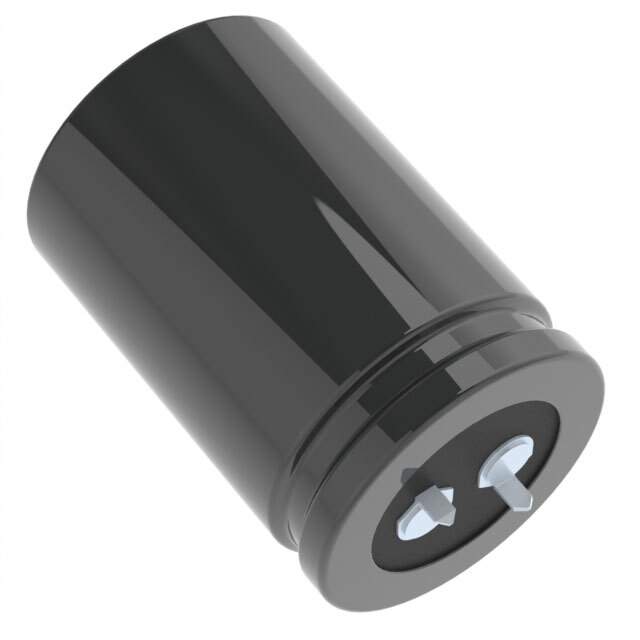

ESMH800VSN103MA50S Real Image
Same model may have multiple batches, images only for reference.

ESMH800VSN103MA50S

Part No ESMH800VSN103MA50S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 10000UF 20% 80V SNAP / 10000 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 25mOhm @ 120Hz 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series SMH
Package Bulk
Capacitance 10000 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) 25mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 6.63 A @ 120 Hz
Ripple Current @ High Frequency 7.956 A @ 100 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1339741-ESMH800VSN103MA50S
Ultra Librarian 3D Model Ultra Librarian ESMH800VSN103MA50S CAD Model

Description

This aluminum electrolytic capacitor from United Chemi-Con's SMH series has a capacitance of 10000µF and a voltage rating of 80V.

  • Series: SMH
  • Manufacturer: United Chemi-Con
  • Capacitance: 10000µF
  • Voltage Rating: 80V
  • Tolerance: ±20%
  • ESR: 25mOhm @ 120Hz
  • Package: Bulk
  • Size/Dimension: 1.378" Dia (35.00mm)
  • Height Seated (Max): 2.047" (52.00mm)
  • Lead Spacing: 0.394" (10.00mm)
  • Polarization: Polar
  • Mounting Type: Through Hole
  • Package/Case: Radial Can-Snap-In
  • Operating Temperature: -40°C to 85°C
  • Application: General-Purpose
