Same model may have multiple batches, images only for reference.

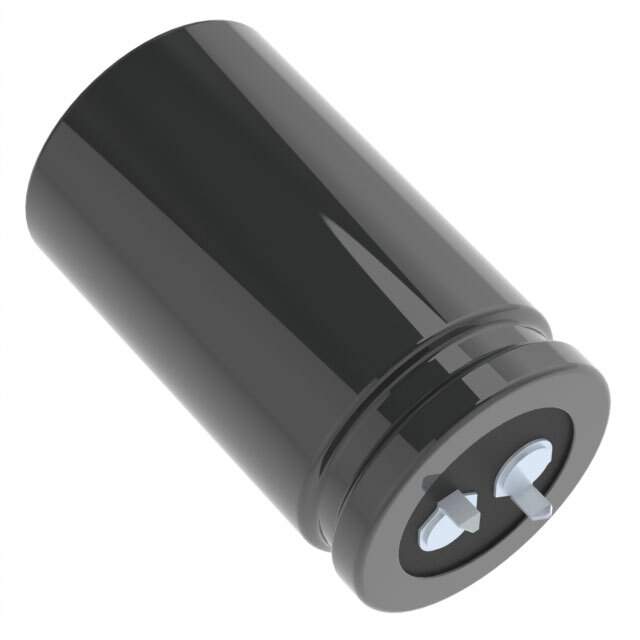

ESMH630VNN103MR50T Real Image
Same model may have multiple batches, images only for reference.

ESMH630VNN103MR50T

Part No ESMH630VNN103MR50T
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 10000UF 20% 63V SNAP / 10000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 25mOhm @ 120Hz 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series SMH
Package Bulk
Product Status Obsolete
Capacitance 10000 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 25mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 5.49 A @ 120 Hz
Ripple Current @ High Frequency 6.588 A @ 100 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1336725-ESMH630VNN103MR50T
Ultra Librarian 3D Model Ultra Librarian ESMH630VNN103MR50T CAD Model

Description

The SMH series aluminum electrolytic capacitor from United Chemi-Con is a high-quality component designed for use in a variety of electronic applications.

  • Capacitance: 10000 µF
  • Voltage Rating: 63 V
  • Package / Case: Radial, can-style
  • Mounting Type: Snap-in
  • Lead Spacing: 0.394" (10.00mm)
  • Seated Height (Max): 2.047" (52.00mm)
  • Diameter: 1.181" (30.00mm)
  • Tolerance: ±20%
  • Lifetime: 2000 hours @ 85°C
  • ESR: 25mOhm @ 120Hz
  • Mounting Feature: Through-hole
  • RoHS3 Compliant: Yes
  • REACH Unaffected: Yes
