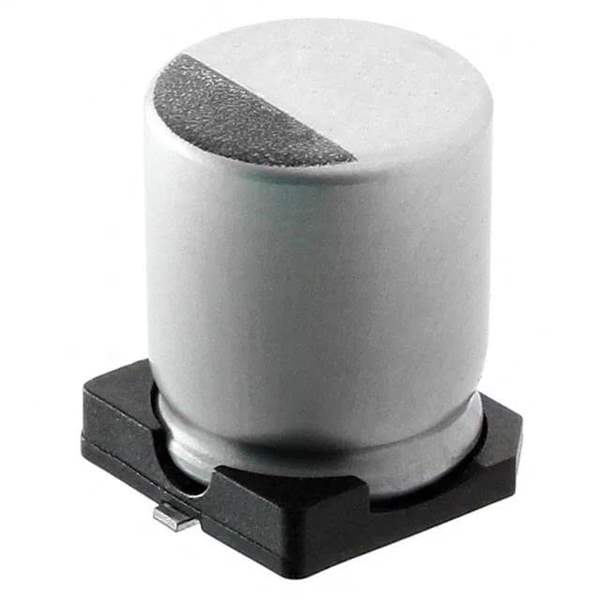

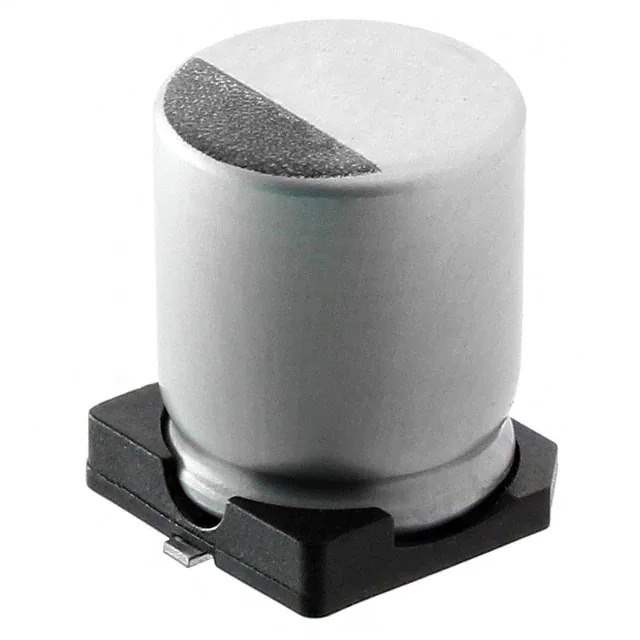

Same model may have multiple batches, images only for reference.

EMZR160ARA102MJA0G

Name: EMZR160ARA102MJA0G
Brand: United Chemi-Con
SKU: 851834
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EMZR160ARA102MJA0G
Manufacturer	United Chemi-Con
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 16V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	United Chemi-Con
Series	Alchip™- MZR
Package	Tape & Reel
Product Status	Active
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	60mOhm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	714 mA @ 120 Hz
Ripple Current @ High Frequency	1.19 A @ 100 kHz
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	851834-EMZR160ARA102MJA0G
Ultra Librarian 3D Model	Ultra Librarian EMZR160ARA102MJA0G CAD Model

Alternative Products

Description

The Alchip™- MZR series aluminum electrolytic capacitor is designed for automotive applications that require surface mount mounting type.

Series: Alchip™- MZR
Application: Automotive
Mounting Type: Surface Mount
Capacitance: 1000 µF
Voltage Rating: 16 V
Tolerance: ±20%
Standard Package: 500 pcs
Package Type: Radial, Can - SMD
Size: 0.394" Dia (10.00mm)
Height: 0.413" (10.50mm)
Operating Temperature: -55°C to 105°C
Lifetime: 2000 hours @ 105°C
Polarization: Polarized
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Manufacturer: United Chemi-Con
Status: Active
