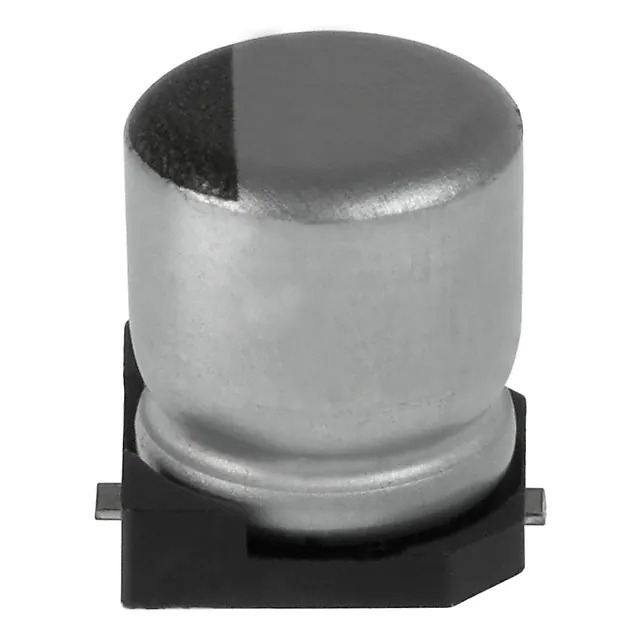

EMZE250ARA101MF90G United Chemi-Con
Same model may have multiple batches, images only for reference.

EMZE250ARA101MF90G

Part No EMZE250ARA101MF90G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 25V SMD / 100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 8000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZE
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 92 mA @ 120 Hz
Ripple Current @ High Frequency 230 mA @ 100 kHz
Impedance 1 Ohms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.354" (9.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360246-EMZE250ARA101MF90G
Ultra Librarian 3D Model Ultra Librarian EMZE250ARA101MF90G CAD Model

Description

The Alchip™- MZE series from United Chemi-Con is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 100 μF
  • Voltage Rating: 25 V
  • Package: Radial, Can - SMD
  • Temperature Range: -25°C to 105°C
  • Ripple Current (Low Frequency): 92 mA @ 120 Hz
  • Ripple Current (High Frequency): 230 mA @ 100 kHz
  • Lifetime: 8000 hours @ 105°C
  • Mounting: Surface Mountable
