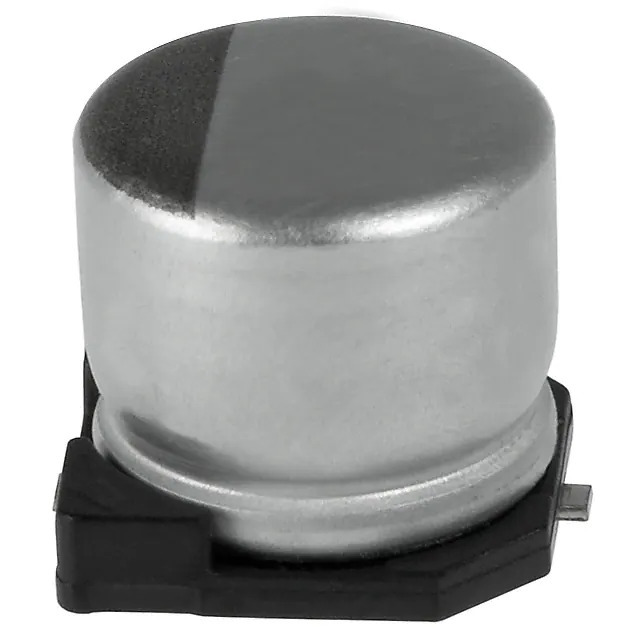

EMZA250ARA101MF80G United Chemi-Con
Same model may have multiple batches, images only for reference.

EMZA250ARA101MF80G

Part No EMZA250ARA101MF80G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 25V SMD / 100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 112 mA @ 120 Hz
Ripple Current @ High Frequency 280 mA @ 100 kHz
Impedance 340 mOhms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360198-EMZA250ARA101MF80G
Ultra Librarian 3D Model Ultra Librarian EMZA250ARA101MF80G CAD Model

Description

The United Chemi-Con Alchip™- MZA series aluminum electrolytic capacitor is a high-quality component designed for automotive applications.

  • Capacitance: 100 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Ripple Current: 112 mA @ Low Frequency (120 Hz) and 280 mA @ High Frequency (100 kHz)
  • Mounting Type: Surface Mount
  • Size: 0.248" (6.30mm) in diameter and a seated height of 0.315" (8.00mm)
  • Packaging: Tape and Reel
  • Lifetime: 2000 hours @ 105°C
