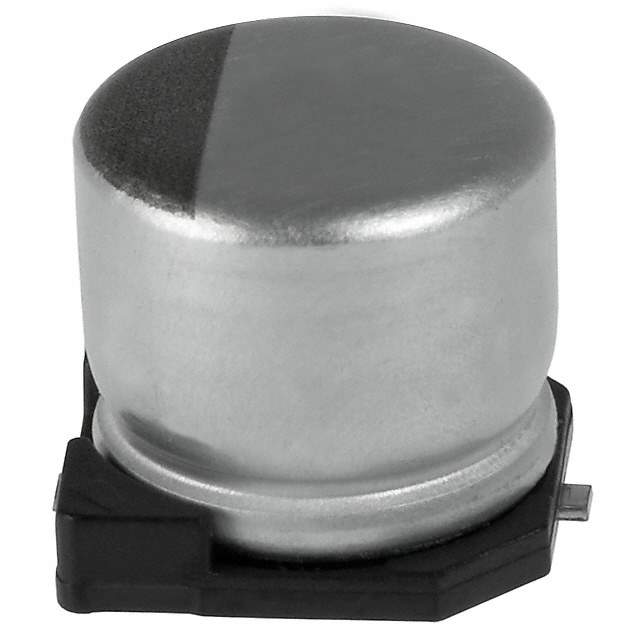

EMZA160ADA221MF80G Real Image
Same model may have multiple batches, images only for reference.

EMZA160ADA221MF80G

Part No EMZA160ADA221MF80G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 16V SMD / 220 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 140 mA @ 120 Hz
Ripple Current @ High Frequency 280 mA @ 100 kHz
Impedance 340 mOhms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-2540-6,565-2540-1,565-2540-2
Standard Package 900
Win Source Part Number 1008578-EMZA160ADA221MF80G
Ultra Librarian 3D Model Ultra Librarian EMZA160ADA221MF80G CAD Model

Description

The Alchip™- MZA series from United Chemi-Con features a 220 µF aluminum electrolytic capacitor that is perfect for automotive applications.

  • Capacitance: 220 µF
  • Rated Voltage: 16 V
  • Tolerance: ±20%
  • Standard Package: 900
  • Mounting: SMD (SMT)
  • Height: 0.315" (8.00mm)
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Impedance: 340 mOhms
  • ESR: Not Specified
  • Lifetime: 2000 Hrs @ 105°C
  • Polarized: Yes
  • Package/Case: Radial, Can - SMD
  • Temperature Range: -55°C ~ 105°C
  • Ripple Current: 140 mA @ 120 Hz and 280 mA @ 100 kHz
