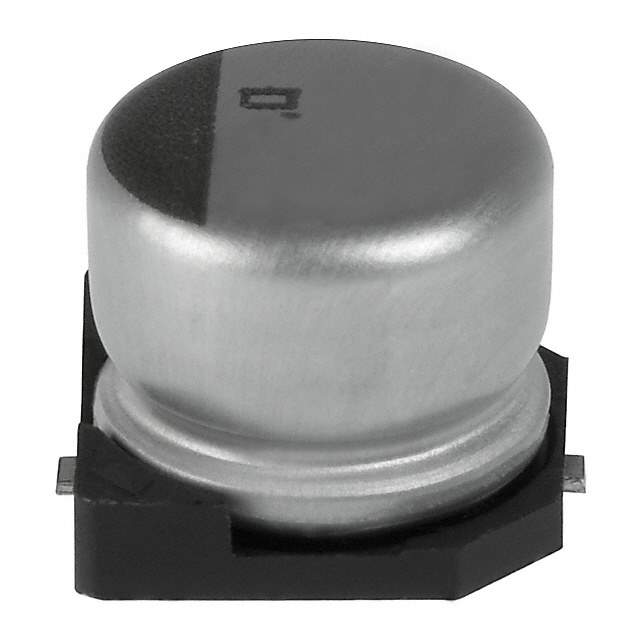

EMVY160ADA101MF55G Real Image
Same model may have multiple batches, images only for reference.

EMVY160ADA101MF55G

Part No EMVY160ADA101MF55G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 16V SMD / Snap Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer United Chemi-Con
Packaging Reel
Capacitance 100μF
Tolerance ±20%
Voltage - Rated 16V
Lifetime at Temp. 1000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications Use For General
Ripple Current at Low Frequency 56mA at 120Hz
Ripple Current at High Frequency 140mA at 100kHz
Impedance 1 Ohms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.205" (5.20mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812505-EMVY160ADA101MF55G
Ultra Librarian 3D Model Ultra Librarian EMVY160ADA101MF55G CAD Model

Description

This electronic component is a United Chemi-Con capacitor from United Chemi-Con.

  • Capacitance: 100μF
  • Tolerance: ±20%
  • Rated Voltage: 16V
  • Impedance: 1 Ohms
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Operating Temperature Range: -55°C to 105°C
  • Package: Radial, can - SMD
  • Height - Seated (Maximum): 0.205" (5.20mm)
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (Unlimited)
  • Lifetime @ Temp: 1000 Hrs @ 105°C
  • Ripple Current @ Low Frequency: 56mA @ 120Hz
  • Ripple Current @ High Frequency: 140mA @ 100kHz
