Same model may have multiple batches, images only for reference.

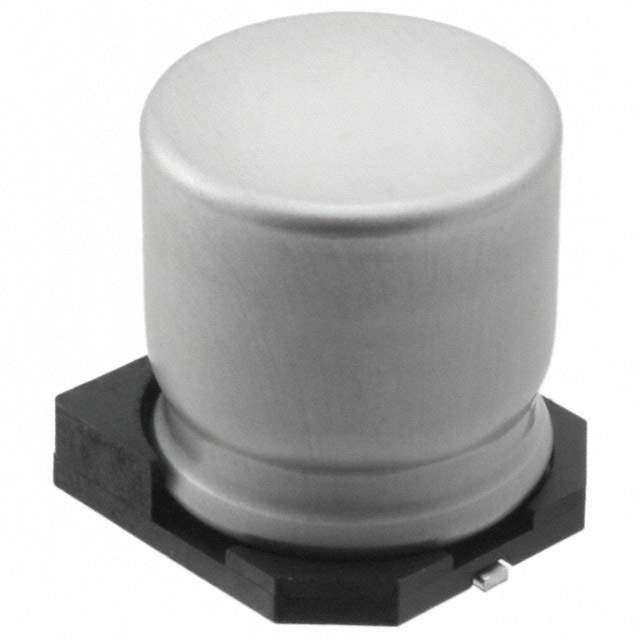

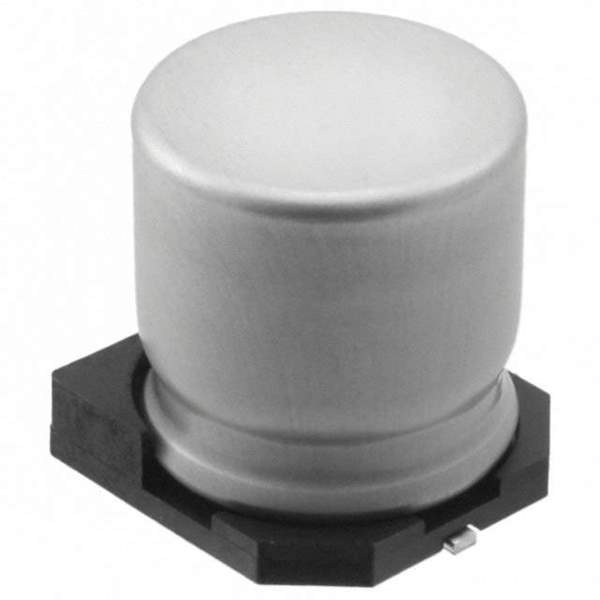

EMVH630ARA101MKE0S Real Image
Same model may have multiple batches, images only for reference.

EMVH630ARA101MKE0S

Part No EMVH630ARA101MKE0S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 63V SMD / 100 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 250mOhm @ 100kHz 5000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MVH
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 250mOhm @ 100kHz
Lifetime @ Temp. 5000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Applications Automotive
Ripple Current @ Low Frequency 200 mA @ 120 Hz
Ripple Current @ High Frequency 500 mA @ 100 kHz
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.531" (13.50mm)
Surface Mount Land Size 0.512" L x 0.512" W (13.00mm x 13.00mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-2336-2,Q4297739,565-2336-1,565-2336-6,EMVH630ADA101MKE0S
Standard Package 250
Win Source Part Number 1181490-EMVH630ARA101MKE0S
Ultra Librarian 3D Model Ultra Librarian EMVH630ARA101MKE0S CAD Model

Description

The EMVH630ARA101MKE0S is an aluminum electrolytic capacitor from United Chemi-Con.

  • Manufacturer: United Chemi-Con
  • Type: Aluminum Electrolytic Capacitor
  • Capacitance: 100µF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • ESR: 250mOhm @ 100kHz
  • Lifetime: 5000 hours @ 125°C
  • Package: Radial, Can - SMD
  • Seated Height: 0.531" (13.50mm)
  • Application: Automotive
  • Operating Temperature Range: -40°C to 125°C
