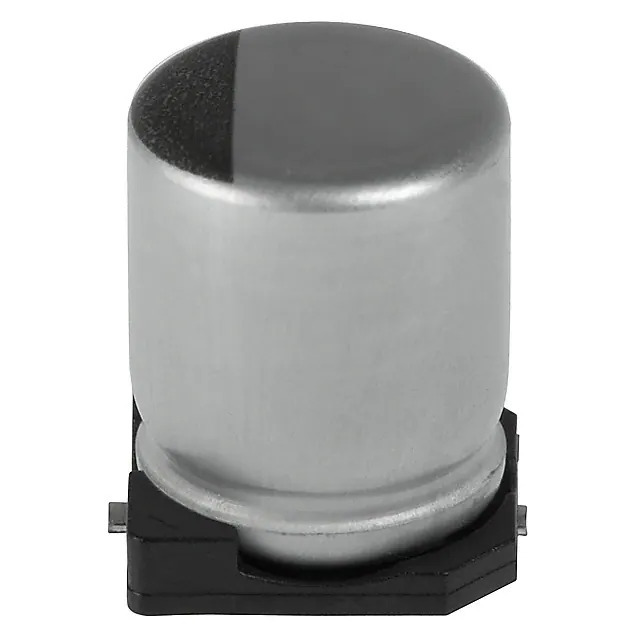

EMVH350ARA101MHA0G United Chemi-Con
Same model may have multiple batches, images only for reference.

EMVH350ARA101MHA0G

Part No EMVH350ARA101MHA0G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 35V SMD / 100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 400mOhm @ 100kHz 2000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MVH
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 400mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings -
Applications Automotive
Ripple Current @ Low Frequency 204.6 mA @ 120 Hz
Ripple Current @ High Frequency 220 mA @ 100 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360282-EMVH350ARA101MHA0G
Ultra Librarian 3D Model Ultra Librarian EMVH350ARA101MHA0G CAD Model

Description

The Alchip™- MVH series capacitor by United Chemi-Con is a high-quality aluminum electrolytic capacitor designed for automotive applications.

  • Capacitance: 100 μF
  • Voltage Rating: 35 V
  • Application: Automotive
  • Tolerance: ±20%
  • Equivalent Series Resistance (ESR): 400mOhm @ 100kHz
  • Diameter: 0.315" (8.00mm)
  • Height: 0.413" (10.50mm)
  • Mounting Type: Surface mount technology (SMT)
  • Ripple Current (Low Frequency): 204.6 mA @ 120 Hz
  • Ripple Current (High Frequency): 220 mA @ 100 kHz
  • Lifetime: 2000 hours @ a maximum operating temperature of 125°C
