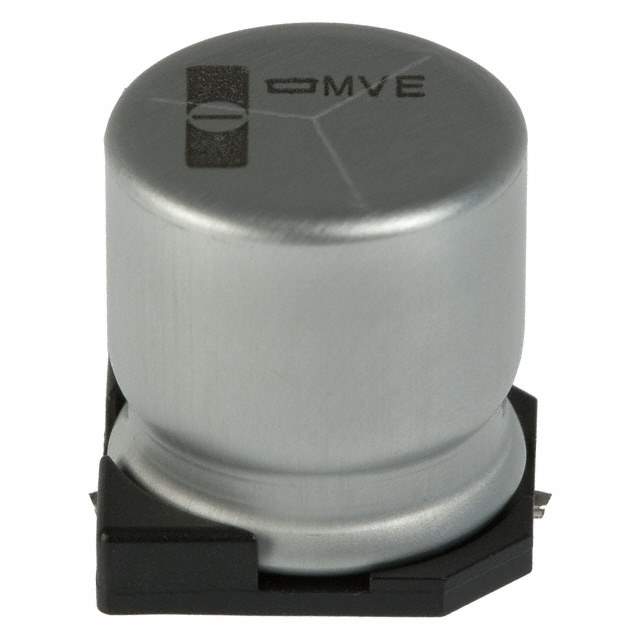

EMVE101ARA680MKE0S Real Image
Same model may have multiple batches, images only for reference.

EMVE101ARA680MKE0S

Part No EMVE101ARA680MKE0S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 68UF 20% 100V SMD / 68 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer United Chemi-Con
Packaging Reel - TR
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.531" (13.50mm)
Surface Mount Land Size 0.512" L x 0.512" W (13.00mm x 13.00mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number EMVE101ADA680MKE0S,565-2278-6,565-2278-2,565-2278-1
Standard Package 250
Win Source Part Number 1330286-EMVE101ARA680MKE0S
Ultra Librarian 3D Model Ultra Librarian EMVE101ARA680MKE0S CAD Model

Description

The EMVE series aluminum electrolytic capacitor from United Chemi-Con is a high-quality surface mount component designed for use in a variety of electronic applications.

  • Manufacturer: United Chemi-Con
  • Series: EMVE
  • Type: Aluminum Electrolytic Capacitor
  • Mounting Type: Surface Mount
  • Capacitance: 68 µF
  • Voltage Rating: 100 V
  • Application: General-Purpose
  • Package Style: Radial, Can
  • Surface Mount Land Size: 0.512" L x 0.512" W (13.00mm x 13.00mm)
  • Seated Height: 0.531" (13.50mm)
  • Diameter: 0.492" (12.50mm)
  • Tolerance: ±20%
  • Lifetime: 2000 hours @ 105°C
  • ESR: Not Specified
  • RoHS3 Compliant: Yes
  • REACH: Unaffected
