Same model may have multiple batches, images only for reference.

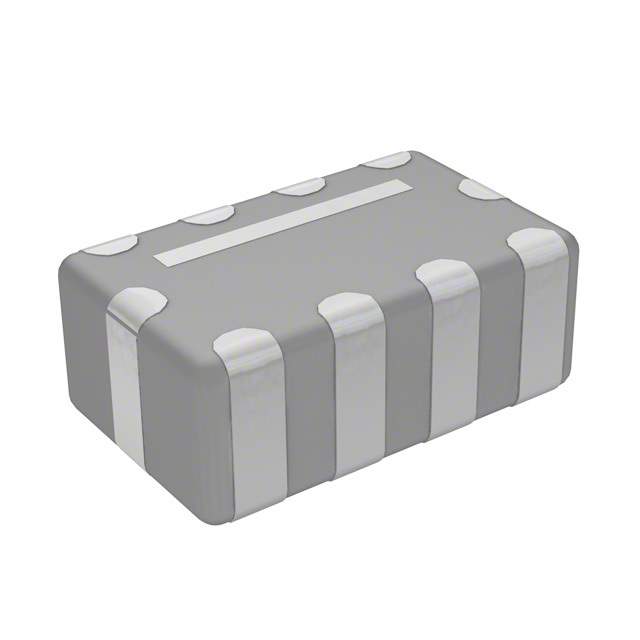

NFA21SL207X1A45L Real Image
Same model may have multiple batches, images only for reference.

NFA21SL207X1A45L

Part No NFA21SL207X1A45L
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 200MHZ SMD
Datasheet
NFA21SL207X1A45L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 200MHz (Cutoff)
Attenuation Value 13dB @ 500MHz
Current 100mA
ESD Protection No
Temperature Range - Operating -55°C to 125°C
Applications Data Lines for Mobile Devices
Voltage Rating 10V
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.024" (0.60mm)
Win Source Part Number 025210-NFA21SL207X1A45L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name NFA21SL_X
Introduction Date May 06, 2005
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian NFA21SL207X1A45L CAD Model

Description

The Murata Electronics North America component with Id 259463 is a low pass filter designed for data lines in mobile devices.

  • Voltage Rating: 10V
  • Current: 100mA
  • Channels: 4
  • Attenuation: 13dB @ 500MHz
  • Filter Order: 2nd
  • Center/Cutoff Frequency: 200MHz (cutoff)
  • ESD Protection: No
  • Family: NFA21SL_X
  • Category: Filters
  • Supply and Demand: Balanced
