Same model may have multiple batches, images only for reference.

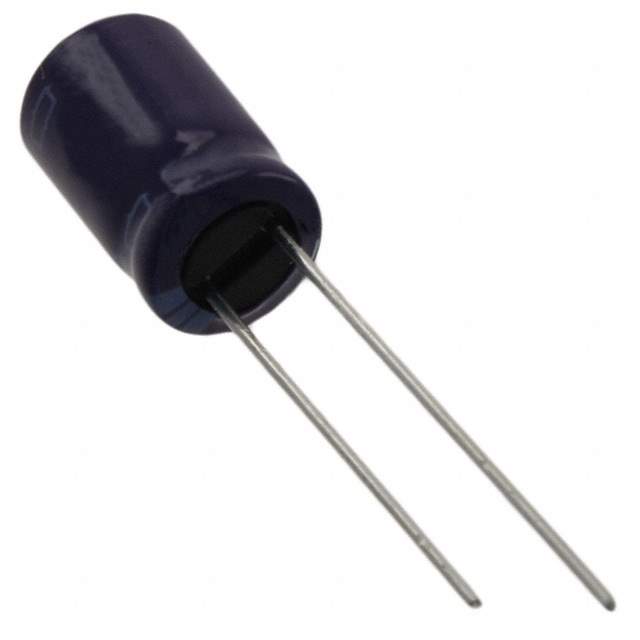

ELXZ6R3ELL102MH15D Real Image
Same model may have multiple batches, images only for reference.

ELXZ6R3ELL102MH15D

Part No ELXZ6R3ELL102MH15D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 6.3V RADIAL / 1000 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXZ
Package Bulk
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 6.3 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 438 mA @ 120 Hz
Ripple Current @ High Frequency 730 mA @ 100 kHz
Impedance 90 mOhms
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.591" (15.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-1878
Standard Package 1,000
Win Source Part Number 1154124-ELXZ6R3ELL102MH15D
Ultra Librarian 3D Model Ultra Librarian ELXZ6R3ELL102MH15D CAD Model

Description

The ELXZ6R3ELL102MH15D is an electronic component manufactured by United Chemi-Con.

  • Win Source Part Number: 1154124-ELXZ6R3ELL102MH15D
  • Capacitance: 1000 μF
  • Voltage - Rated: 6.3 V
  • Height - Seated (Max): 0.591" (15.00mm)
  • Standard Package: 1,000
  • Lead Spacing: 0.138" (3.50mm)
  • Type: Through Hole
  • Polarization: Polar
  • Package / Case: Radial, Can
  • Temperature Range - Operating: -55°C ~ 105°C
  • Dimension: 0.315" Dia (8.00mm)
