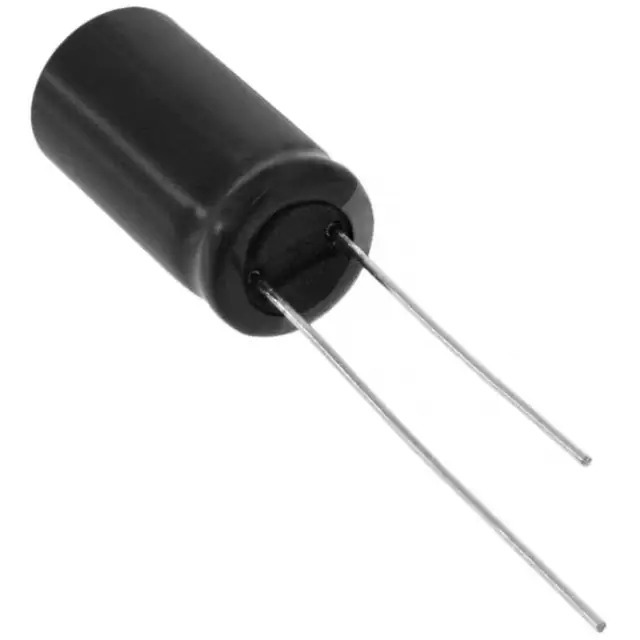

ELXV100ETD102MJ20S United Chemi-Con
Same model may have multiple batches, images only for reference.

ELXV100ETD102MJ20S

Part No ELXV100ETD102MJ20S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 10V RADIAL / 1000 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Chemi-Con
Series LXV
Package Tape & Box (TB)
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 742 mA @ 120 Hz
Ripple Current @ High Frequency 1.06 A @ 100 kHz
Impedance 62 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357856-ELXV100ETD102MJ20S
Ultra Librarian 3D Model Ultra Librarian ELXV100ETD102MJ20S CAD Model

Description

The 1357856-ELXV100ETD102MJ20S is an automotive aluminum electrolytic capacitor manufactured by Chemi-Con.

  • Capacitor Type: Aluminum Electrolytic
  • Series: LXV
  • Application: Automotive
  • Capacitance: 1000 μF
  • Voltage Rating: 10 V
  • Temperature Range: -55°C to 105°C
  • Tolerance: ±20%
  • Ripple Current: 742 mA @ 120 Hz, 1.06 A @ 100 kHz
  • Lifetime: 3000 hours @ 105°C
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Lead Spacing: 0.197" (5.00mm)
  • Size: 0.394" (10.00mm) Dia x 0.846" (21.50mm) H
  • AEC-Q200: Yes
  • Impedance: 62 mOhms
  • REACH: Unaffected
  • ECCN: EAR99
