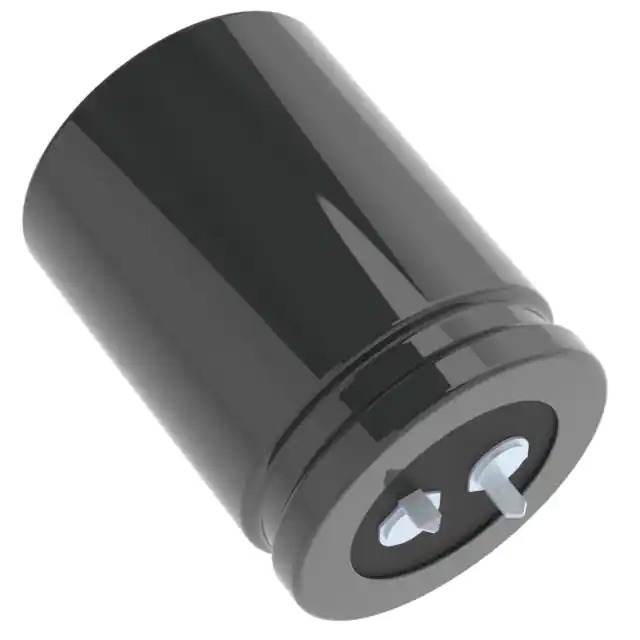

Same model may have multiple batches, images only for reference.
ELXS3B1VSN102MA45S United Chemi-Con
Same model may have multiple batches, images only for reference.

ELXS3B1VSN102MA45S

Part No ELXS3B1VSN102MA45S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 315V SNAP / 1000 µF 315 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXS
Package Bulk
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 315 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 2.91 A @ 120 Hz
Ripple Current @ High Frequency 4.1613 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.850" (47.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360774-ELXS3B1VSN102MA45S
Ultra Librarian 3D Model Ultra Librarian ELXS3B1VSN102MA45S CAD Model

Description

The 1360774-ELXS3B1VSN102MA45S is a high-capacity aluminum electrolytic capacitor manufactured by United Chemi-Con.

  • Series: LXS
  • Application: General Purpose
  • Capacitance: 1000 μF
  • Voltage Rating: 315 V
  • Package / Case: Radial, Can - Snap-In
  • Operating Temperature: -25°C to 105°C
  • Tolerance: ±20%
  • Ripple Current - Low Frequency: 2.91 A @ 120 Hz
  • Ripple Current - High Frequency: 4.1613 A @ 50 kHz
  • Lifetime: 5000 Hours @ 105°C
  • Polarization: Polarized
  • Diameter: 1.378"
  • Height: 1.850"
  • REACH Status: Meets REACH Requirements
  • ECCN: EAR99
