Same model may have multiple batches, images only for reference.

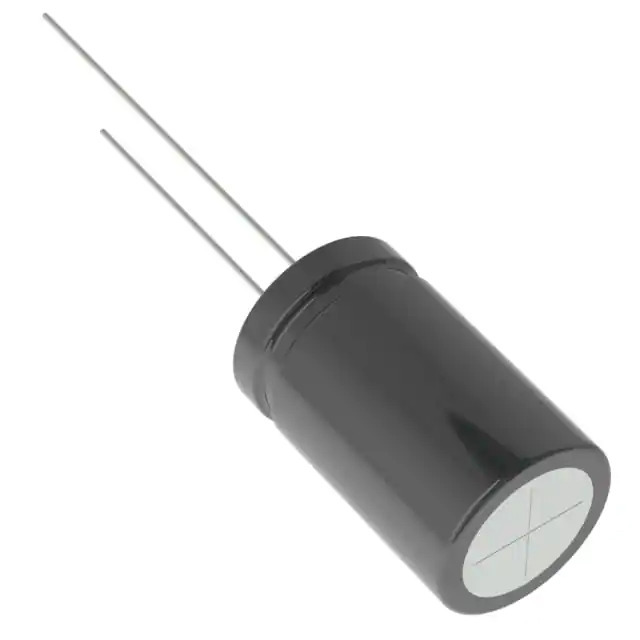

ELE-630ELL470MHB5D United Chemi-Con
Same model may have multiple batches, images only for reference.

ELE-630ELL470MHB5D

Part No ELE-630ELL470MHB5D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 63V RADIAL / 47 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LE
Package Bulk
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 168 mA @ 120 Hz
Ripple Current @ High Frequency 240 mA @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358155-ELE-630ELL470MHB5D
Ultra Librarian 3D Model Ultra Librarian ELE-630ELL470MHB5D CAD Model

Description

The 1358155-ELE-630ELL470MHB5D is a high-quality aluminum electrolytic capacitor manufactured by United Chemi-Con. It belongs to the LE series and is designed for general-purpose applications.

  • Series: LE
  • Capacitance: 47 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Operating Temperature: -40°C ~ 105°C
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Lead Spacing: 0.138" (3.50mm)
  • Size / Dimension: 0.315" Dia (8.00mm)
  • Height - Seated (Max): 0.512" (13.00mm)
  • Ripple Current: 168 mA @ 120 Hz, 240 mA @ 100 kHz
  • Lifetime @ Temp.: 10,000 Hrs @ 105°C
  • REACH Status: REACH Unaffected
  • ECCN: EAR99
  • Polarization: Polar
