Same model may have multiple batches, images only for reference.

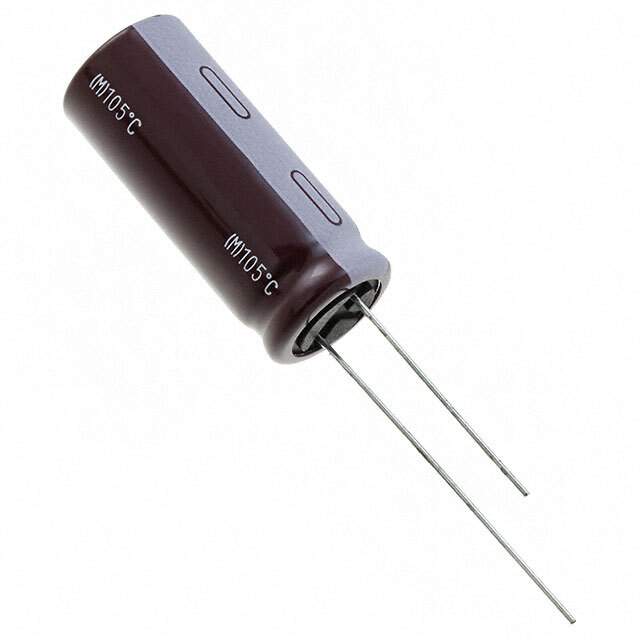

EKZN630ELL681MK30S Real Image
Same model may have multiple batches, images only for reference.

EKZN630ELL681MK30S

Part No EKZN630ELL681MK30S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 63V RADIAL / 680 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZN
Package Bulk
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.656 A @ 120 Hz
Ripple Current @ High Frequency 2.76 A @ 100 kHz
Impedance 24 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.240" (31.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337102-EKZN630ELL681MK30S
Ultra Librarian 3D Model Ultra Librarian EKZN630ELL681MK30S CAD Model

Description

The KZN series aluminum electrolytic capacitor is a high-performance component that is ideal for general-purpose applications.

  • Series: KZN
  • Capacitance: 680 µF
  • Voltage Rating: 63 V
  • Operating Temperature: -40°C to 105°C
  • Lead Spacing: 0.197" (5.00mm)
  • Lifetime: 10000 hours @ 105°C
  • Package: Radial, Can-Type
  • Mounting Type: Through-Hole
  • Diameter: 0.492" (12.50mm)
  • Packaging: Bulk
  • Manufacturer: United Chemi-Con
  • Standard Package: 1000
