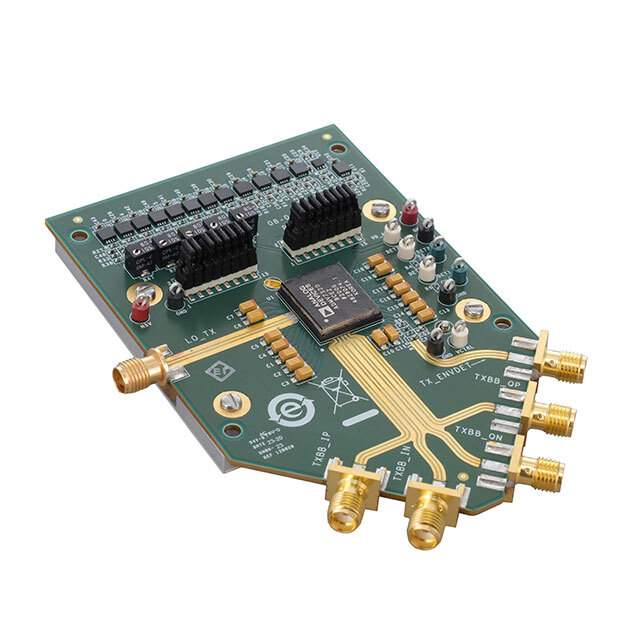

The ADMV7320-EVALZ by Analog Devices Inc. is a comprehensive evaluation board designed to showcase the capabilities of the ADMV7320, a highly integrated microwave upconverter optimized for 28 GHz 5G radio applications. This evaluation board is a vital tool for engineers and designers seeking to test and validate the performance of the ADMV7320 in a real-world scenario.

The ADMV7320-EVALZ features the ADMV7320 chip, which boasts a wide RF bandwidth from 24.5 GHz to 43.5 GHz, making it suitable for a variety of high-frequency applications beyond just 5G, such as satellite communications and radar systems. The device integrates an I/Q mixer, LO buffer amplifier, and RF output balun, providing users with a simple and compact solution for upconversion needs.

The evaluation board is designed with user-friendliness in mind, offering easy access to all the critical pins and signals of the ADMV7320 through SMA connectors. This allows for quick and straightforward connection to test equipment and other external circuitry. The board also includes decoupling and matching components that are optimized for performance, ensuring that users can achieve the best possible results from their evaluations.

On the ADMV7320-EVALZ, the ADMV7320 is configured to accept an IF input range from 800 MHz to 6 GHz, providing a broad frequency range for the input signal. Additionally, the board is equipped with an LO input that supports a frequency range from 21.7 GHz to 33.4 GHz, which can be supplied externally through another SMA connector.

The ADMV7320-EVALZ comes with comprehensive documentation, including a detailed user guide that covers setup, operation, and the evaluation procedure. This, combined with the technical support and resources provided by Analog Devices Inc., ensures that users can quickly become proficient in utilizing the evaluation board and the ADMV7320 chip for their specific applications.

Overall, the ADMV7320-EVALZ is an indispensable tool for any professional working with high-frequency signal upconversion, providing a straightforward platform for assessing the ADMV7320's performance and facilitating the development of cutting-edge RF solutions.
