Same model may have multiple batches, images only for reference.

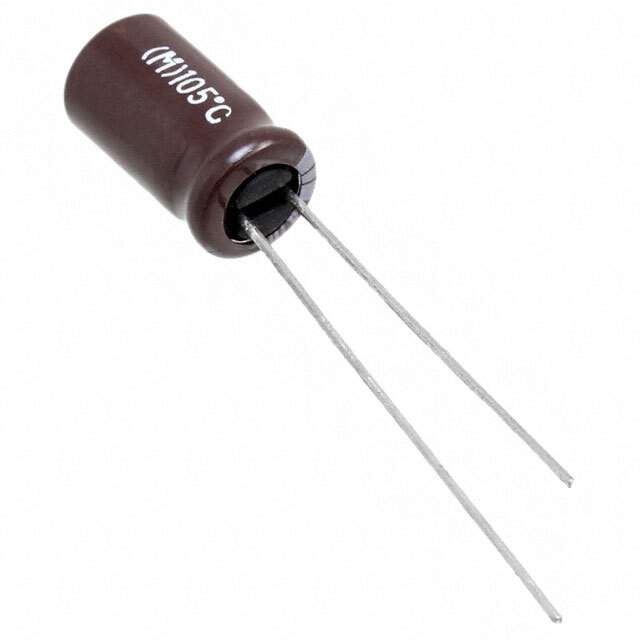

EKZN101ELL180MF11D Real Image
Same model may have multiple batches, images only for reference.

EKZN101ELL180MF11D

Part No EKZN101ELL180MF11D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 18UF 20% 100V RADIAL / 18 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer United Chemi-Con
Packaging Bulk
Capacitance 18 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 6000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 148 mA @ 120 Hz
Ripple Current @ High Frequency 370 mA @ 100 kHz
Impedance 340 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 565-4131
Standard Package 2,000
Win Source Part Number 1331395-EKZN101ELL180MF11D
Ultra Librarian 3D Model Ultra Librarian EKZN101ELL180MF11D CAD Model

Description

The EKZN101ELL180MF11D series aluminum electrolytic capacitor is a high-performance component that is ideal for general-purpose applications.

  • Series: EKZN101ELL180MF11D
  • Manufacturer: United Chemi-Con
  • Application: General-Purpose
  • Capacitance: 18 µF
  • Voltage Rating: 100 V
  • Operating Temperature Range: -40°C to 105°C
  • Lead Spacing: 0.098" (2.50mm)
  • Lifetime: 6000 hours @ 105°C
  • Package: Radial, can-type
  • Mounting: Through-Hole
  • Diameter: 0.248" (6.30mm)
  • Packaging: Bulk
  • Standard Package: 2000
