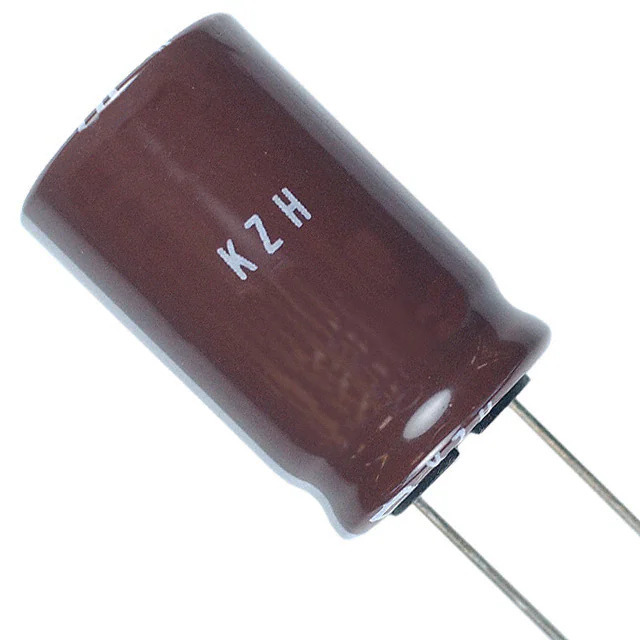

EKZH160ELL221MF11D United Chemi-Con
Same model may have multiple batches, images only for reference.

EKZH160ELL221MF11D

Part No EKZH160ELL221MF11D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 16V RADIAL / 220 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZH
Package Bulk
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 250 mA @ 120 Hz
Ripple Current @ High Frequency 500 mA @ 100 kHz
Impedance 110 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357747-EKZH160ELL221MF11D
Ultra Librarian 3D Model Ultra Librarian EKZH160ELL221MF11D CAD Model

Description

The 1357747-EKZH160ELL221MF11D is a high-quality aluminum electrolytic capacitor from United Chemi-Con's KZH series.

  • Application: General-Purpose
  • Capacitance: 220 µF
  • Voltage Rating: 16 V
  • Temperature Range: -40°C to 105°C
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Lifetime: 5000 hours @ 105°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 250 mA
  • Ripple Current (High Frequency): 500 mA
