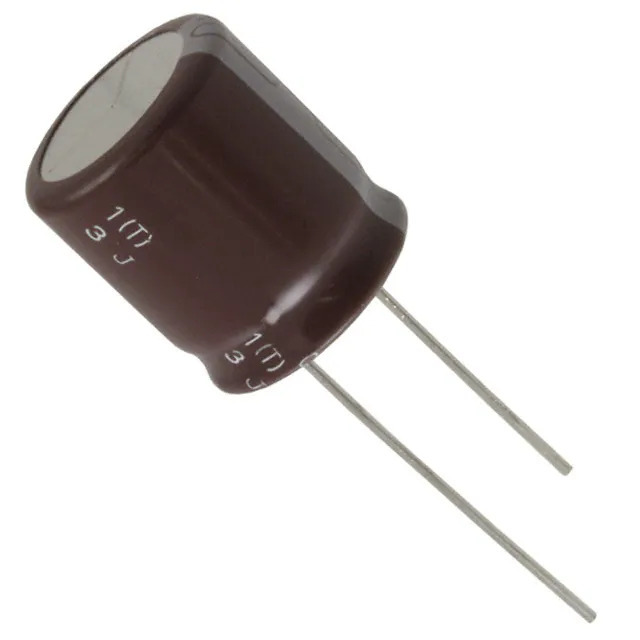

Same model may have multiple batches, images only for reference.

EKZE630ELL821MM25S

Name: EKZE630ELL821MM25S
Brand: United Chemi-Con
SKU: 1358222
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EKZE630ELL821MM25S
Manufacturer	United Chemi-Con
Catalog	Aluminum Capacitors
Description	CAP ALUM 820UF 20% 63V RADIAL / 820 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	United Chemi-Con
Series	KZE
Package	Bulk
Product Status	Active
Capacitance	820 µF
Tolerance	±20%
Voltage - Rated	63 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.68 A @ 120 Hz
Ripple Current @ High Frequency	2.8 A @ 100 kHz
Impedance	24 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358222-EKZE630ELL821MM25S
Ultra Librarian 3D Model	Ultra Librarian EKZE630ELL821MM25S CAD Model

Alternative Products

Description

The 1358222-EKZE630ELL821MM25S is a high-quality aluminum electrolytic capacitor manufactured by United Chemi-Con.

Series: KZE
Capacitance: 820 μF
Voltage Rating: 63 V
Temperature Range: -40°C to 105°C
Tolerance: ±20%
Ripple Current: 1.68 A @ low frequency (120 Hz) and 2.8 A @ high frequency (100 kHz)
Lifetime: 5000 hours @ 105°C
Mounting Type: Through-hole
Package: Radial can
Lead Spacing: 0.295" (7.50mm)
Size/Dimension: 0.709" Dia (18.00mm)
Packaging: Bulk
