Same model may have multiple batches, images only for reference.

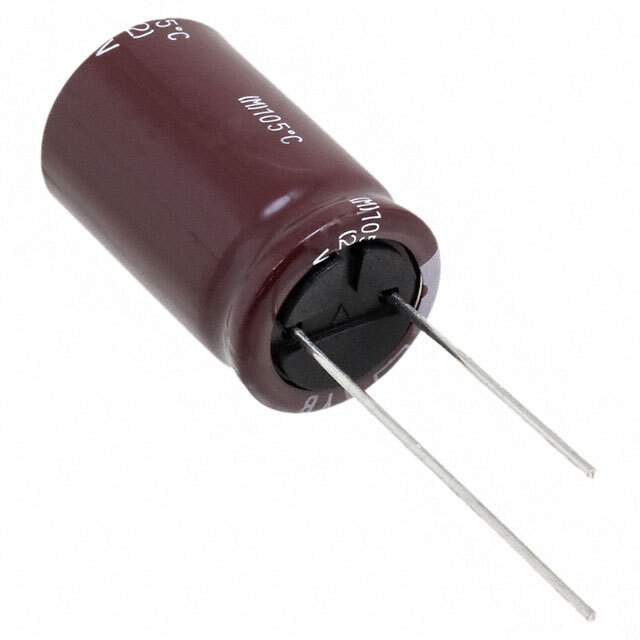

EKYB630ELL102ML25S Real Image
Same model may have multiple batches, images only for reference.

EKYB630ELL102ML25S

Part No EKYB630ELL102ML25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 63V RADIAL / 1000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KYB
Package Bulk
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.638 A @ 120 Hz
Ripple Current @ High Frequency 2.73 A @ 100 kHz
Impedance 25 mOhms
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.043" (26.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1341093-EKYB630ELL102ML25S
Ultra Librarian 3D Model Ultra Librarian EKYB630ELL102ML25S CAD Model

Description

The KYB series aluminum electrolytic capacitor from United Chemi-Con is a high-quality component designed for use in general purpose applications.

  • Capacitance: 1000 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Impedance: 25 mOhms
  • ESR (Equivalent Series Resistance): not specified
  • Lifetime @ Temperature: 10000 Hrs @ 105°C
  • Polarization: polarized
  • Mounting Type: through-hole
  • Package / Case: radial, can
  • Operating Temperature: -40°C ~ 105°C
