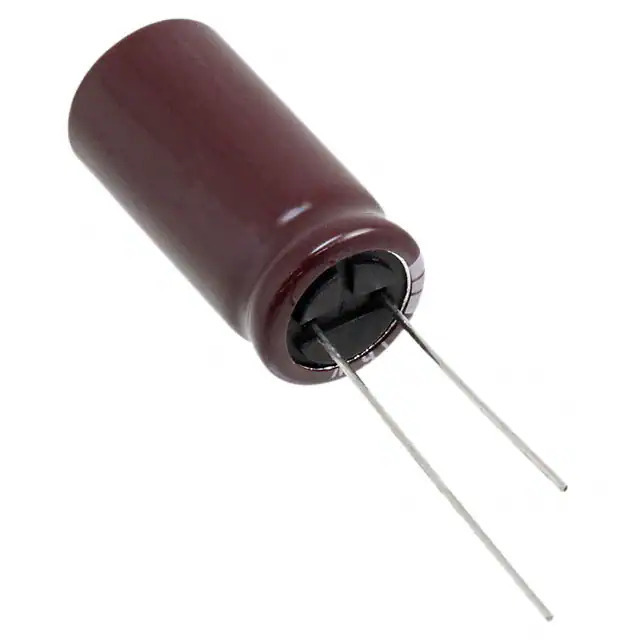

EKYB500ELL681MK25S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKYB500ELL681MK25S

Part No EKYB500ELL681MK25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 50V RADIAL / 680 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KYB
Package Bulk
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.26 A @ 120 Hz
Ripple Current @ High Frequency 2.1 A @ 100 kHz
Impedance 30 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.043" (26.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357954-EKYB500ELL681MK25S
Ultra Librarian 3D Model Ultra Librarian EKYB500ELL681MK25S CAD Model

Description

The EKYB500ELL681MK25S is a through-hole aluminum electrolytic capacitor from United Chemi-Con's KYB series.

  • Capacitance: 680µF
  • Voltage Rating: 50V
  • Application: General Purpose
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 1.26A @ 120Hz
  • Ripple Current (High Frequency): 2.1A @ 100kHz
  • Lead Spacing: 5.00mm
  • Size/Dimension: 12.50mm Diameter
  • Height (Seated): 26.50mm
  • Mounting Type: Through Hole
  • Package: Radial, Can
  • Lifetime: 10,000 hours @ 105°C
  • REACH Status: Unaffected
  • ECCN: EAR99
