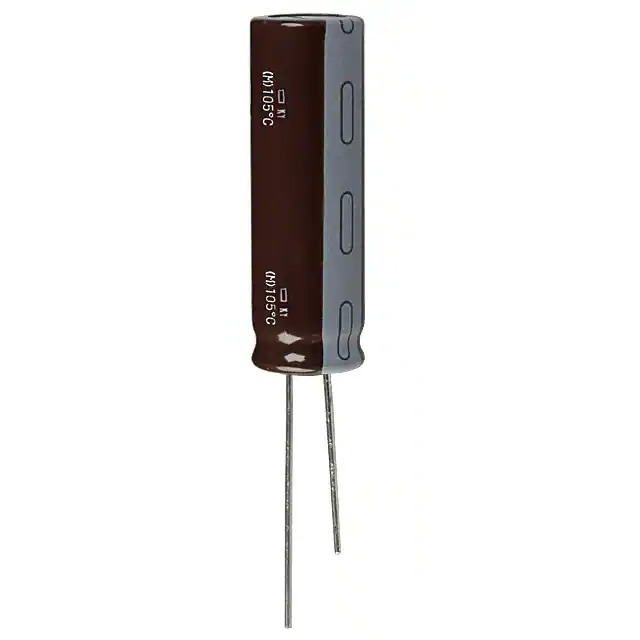

Same model may have multiple batches, images only for reference.
EKY-630ELL681MK40S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKY-630ELL681MK40S

Part No EKY-630ELL681MK40S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 63V RADIAL / 680 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KY
Package Bulk
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.68 A @ 120 Hz
Ripple Current @ High Frequency 2.8 A @ 100 kHz
Impedance 21 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.634" (41.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358202-EKY-630ELL681MK40S
Ultra Librarian 3D Model Ultra Librarian EKY-630ELL681MK40S CAD Model

Description

The EKY-630ELL681MK40S capacitor from United Chemi-Con is part of the KY series, designed for general-purpose applications. With a capacitance of 680 µF and a voltage rating of 63 V, this aluminum electrolytic capacitor offers reliable performance in a radial, can package.

  • Capacitance: 680 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 1.68 A @ 120 Hz
  • Ripple Current (High Frequency): 2.8 A @ 100 kHz
  • Mounting Type: Through-hole
  • Lead Spacing: 0.197" (5.00mm)
  • Size: 0.492" diameter (12.50mm)
  • Maximum Seated Height: 1.634" (41.50mm)
  • Lifetime: 10000 hours @ a temperature of 105°C
  • REACH: Unaffected
  • ECCN: EAR99
