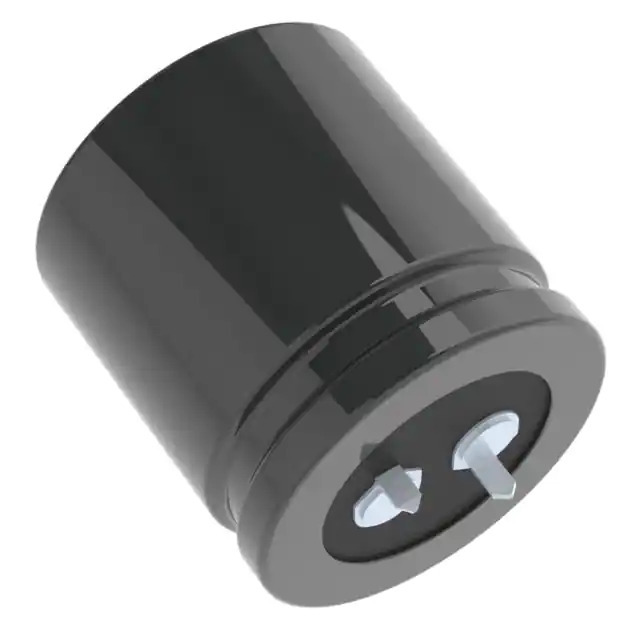

EKMR451VSN471MA35S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKMR451VSN471MA35S

Part No EKMR451VSN471MA35S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 450V SNAP / 470 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KMR
Package Bulk
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.77 A @ 120 Hz
Ripple Current @ High Frequency 2.5311 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.476" (37.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360685-EKMR451VSN471MA35S
Ultra Librarian 3D Model Ultra Librarian EKMR451VSN471MA35S CAD Model

Description

The KMR series from United Chemi-Con is a bulk-packaged radial aluminum electrolytic capacitor.

  • Series: KMR
  • Capacitance: 470 μF
  • Voltage Rating: 450 V
  • Application: General Purpose
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 1.77 A @ 120 Hz
  • Ripple Current (High Frequency): 2.5311 A @ 50 kHz
  • Lead Spacing: 0.394" (10.00mm)
  • Size/Dimension: 1.378" (35.00mm) in diameter and 1.476" (37.50mm) in height
  • Lifetime: 2000 hours @ a maximum temperature of 105°C
  • Mounting Type: Through-Hole
  • Polarization: Polarized
  • Product Status: Active
