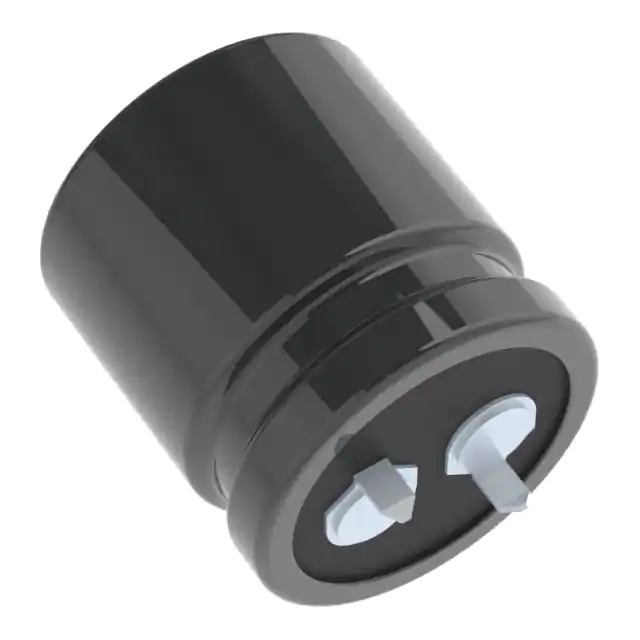

EKMM401VSN101MQ25S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKMM401VSN101MQ25S

Part No EKMM401VSN101MQ25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 400V SNAP / 100 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2.486Ohm @ 120Hz 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KMM
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) 2.486Ohm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 700 mA @ 120 Hz
Ripple Current @ High Frequency 1.001 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.000" Dia (25.40mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1358278-EKMM401VSN101MQ25S
Ultra Librarian 3D Model Ultra Librarian EKMM401VSN101MQ25S CAD Model

Description

The EKMM401VSN101MQ25S is an aluminum electrolytic capacitor from United Chemi-Con's KMM series.

  • Capacitance: 100 µF
  • Voltage Rating: 400 V
  • Tolerance: ±20%
  • Equivalent Series Resistance (ESR): 2.486 Ohm @ 120 Hz
  • Mounting Type: Through-Hole
  • Package: Radial, Can - Snap-In
  • Size: 1.000" diameter and a height of 1.063"
  • Ripple Current (Low Frequency): 700 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.001 A @ 50 kHz
  • Lifetime: 3,000 hours @ 105°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarized: Yes
