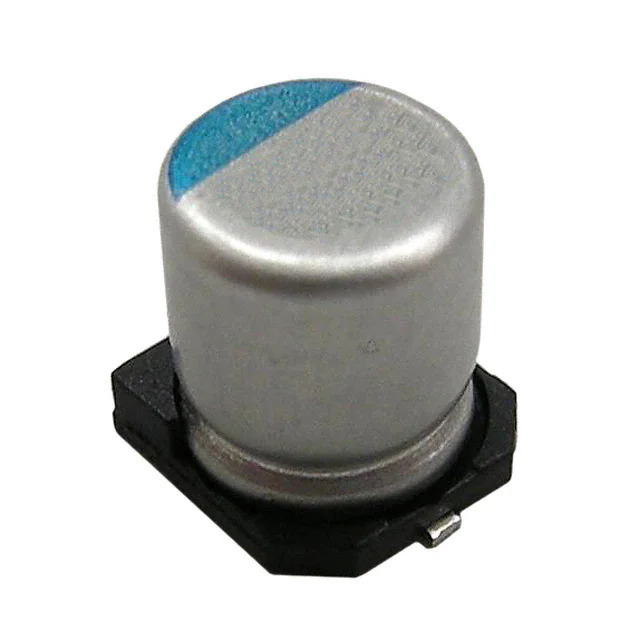

Same model may have multiple batches, images only for reference.
APXJ160ARA221MF61G United Chemi-Con
Same model may have multiple batches, images only for reference.

APXJ160ARA221MF61G

Part No APXJ160ARA221MF61G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 220UF 20% 16V SMD / 220 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 20mOhm 15000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXJ
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 20mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 175 mA @ 120 Hz
Ripple Current @ High Frequency 3.5 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359588-APXJ160ARA221MF61G
Ultra Librarian 3D Model Ultra Librarian APXJ160ARA221MF61G CAD Model

Description

The NPCAP™-PXJ series aluminum polymer capacitor is a high-quality component suitable for general-purpose applications from United Chemi-Con.

  • Capacitance: 220 µF
  • Voltage - Rated: 16 V
  • Application: General Purpose
  • Size / Dimension: 0.248" Dia (6.30mm)
  • Height - Seated (Max): 0.240" (6.10mm)
  • Lifetime @ Temp.: 15000 Hrs @ 105°C
  • Ripple Current @ Low Frequency: 175 mA @ 120 Hz
  • Ripple Current @ High Frequency: 3.5 A @ 100 kHz
  • Packaging: Tape & Reel (TR)
  • Mounting Type: Surface Mount
  • Status: Active
  • REACH: Unaffected
