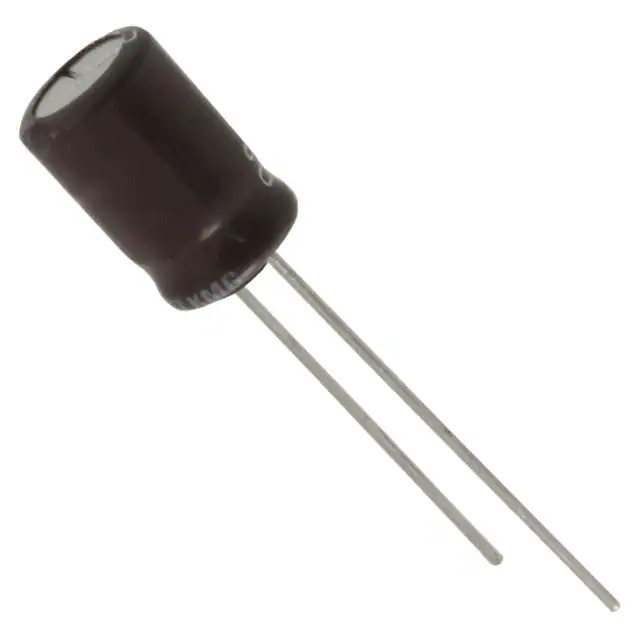

EKMG500ETD101MHB5D United Chemi-Con
Same model may have multiple batches, images only for reference.

EKMG500ETD101MHB5D

Part No EKMG500ETD101MHB5D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V RADIAL / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KMG
Package Tape & Box (TB)
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 180 mA @ 120 Hz
Ripple Current @ High Frequency 270 mA @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357940-EKMG500ETD101MHB5D
Ultra Librarian 3D Model Ultra Librarian EKMG500ETD101MHB5D CAD Model

Description

The KMG series aluminum electrolytic capacitor is a high-quality component suitable for general-purpose electronic applications.

  • Capacitance: 100 µF
  • Voltage Rating: 50 V
  • Operating Temperature: -55°C to 105°C
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Size: 0.315" diameter
  • Height: 0.512"
  • Lifetime: 1000 hours @ 105°C
  • Ripple Current @ Low Frequency: 180 mA @ low frequency
  • Ripple Current @ High Frequency: 270 mA @ high frequency
  • Application: General Purpose
  • Manufacturer: United Chemi-Con
