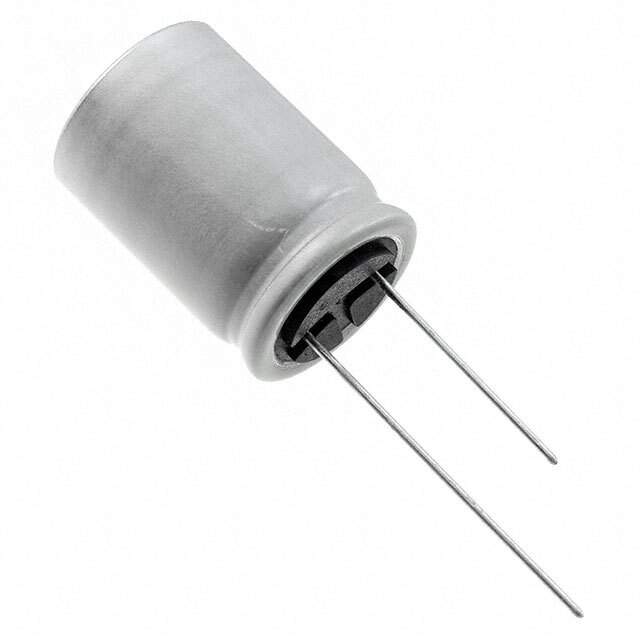

EGPD101ELL511MM25H Real Image
Same model may have multiple batches, images only for reference.

EGPD101ELL511MM25H

Part No EGPD101ELL511MM25H
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 510UF 20% 100V RADIAL / 510 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 45mOhm @ 100kHz 2000 Hrs @ 135°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series GPD
Package Bulk
Capacitance 510 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) 45mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 135°C
Temperature Range - Operating -40°C ~ 135°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 1.46 A @ 120 Hz
Ripple Current @ High Frequency 2.92 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.043" (26.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337894-EGPD101ELL511MM25H
Ultra Librarian 3D Model Ultra Librarian EGPD101ELL511MM25H CAD Model

Description

The United Chemi-Con 1337894-EGPD101ELL511MM25H is an aluminum electrolytic capacitor with a capacitance of 510 µF and a voltage rating of 100 V.

  • Series: GPD
  • Capacitance: 510 µF
  • Voltage Rating: 100 V
  • Mounting Type: Through Hole
  • Packaging: Bulk
  • Polarization: Polarized
  • Height: 1.043" (26.50mm)
  • Lead Spacing: 0.295" (7.50mm)
  • Tolerance: ±20%
  • Lifetime: 2000 Hrs @ 135°C
  • AEC-Q200: Compliant
  • Operating Temperature: -40°C ~ 135°C
