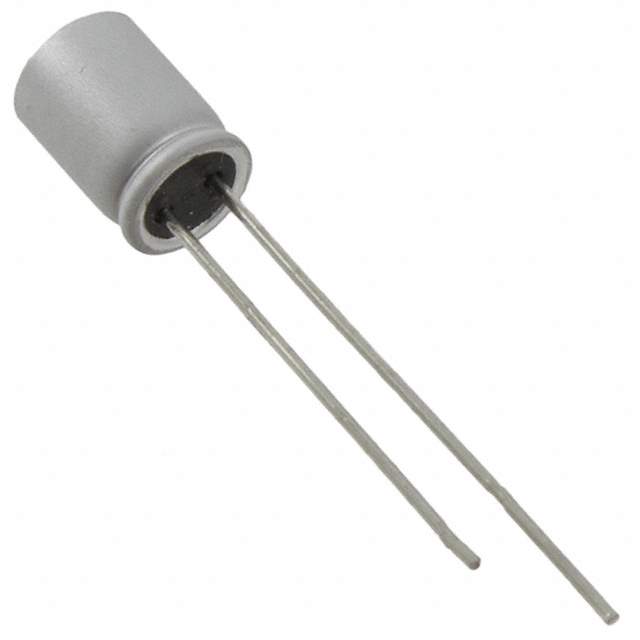

APSF2R5ELL821MF08S Real Image
Same model may have multiple batches, images only for reference.

APSF2R5ELL821MF08S

Part No APSF2R5ELL821MF08S
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 820UF 20% 2.5V T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer United Chemi-Con
Packaging Reel
Type Polymer
Capacitance 820μF
Tolerance ±20%
Voltage - Rated 2.5V
ESR (Equivalent Series Resistance) 5mOhm
Lifetime at Temp. 5000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications Use For General
Ripple Current at High Frequency 5.9A at 100kHz
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.354" (9.00mm)
Mounting Style Through Hole
Manufacturer Package Radial, Can
Manufacturer Pack Quantity 1,000
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811028-APSF2R5ELL821MF08S
Ultra Librarian 3D Model Ultra Librarian APSF2R5ELL821MF08S CAD Model

Description

The United Chemi-Con 811028-APSF2R5ELL821MF08S is a polymer capacitor.

  • Capacitance: 820μF
  • Tolerance: ±20%
  • Voltage Rating: 2.5V
  • Mounting Type: Through Hole
  • Lead Spacing: 0.098" (2.50mm)
  • ESR: 5mOhm
  • Surface Mount Land Size: -
  • Operating Temperature: -55°C ~ 105°C
  • Dimension: 0.248" Dia (6.30mm)
  • Manufacturer Package: Radial, Can
  • Height: 0.354" (9.00mm)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1,000
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Ripple Current @ High Frequency: 5.9A @ 100kHz
