FR-PC TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

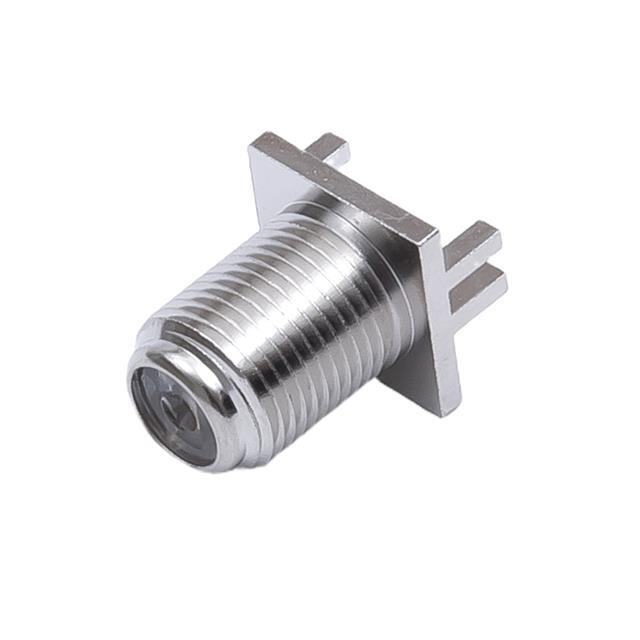

FR-PC

Part No FR-PC
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Assemblies
Description F Type Connector Jack, Female Socket 75 Ohms Board Edge, End Launch Solder
Datasheet
FR-PC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Connector Style F Type
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 75 Ohms
Mounting Type Board Edge, End Launch
Fastening Type Threaded
Frequency - Max 3GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Phosphor Bronze
Ultra Librarian 3D Model Ultra Librarian FR-PC CAD Model
