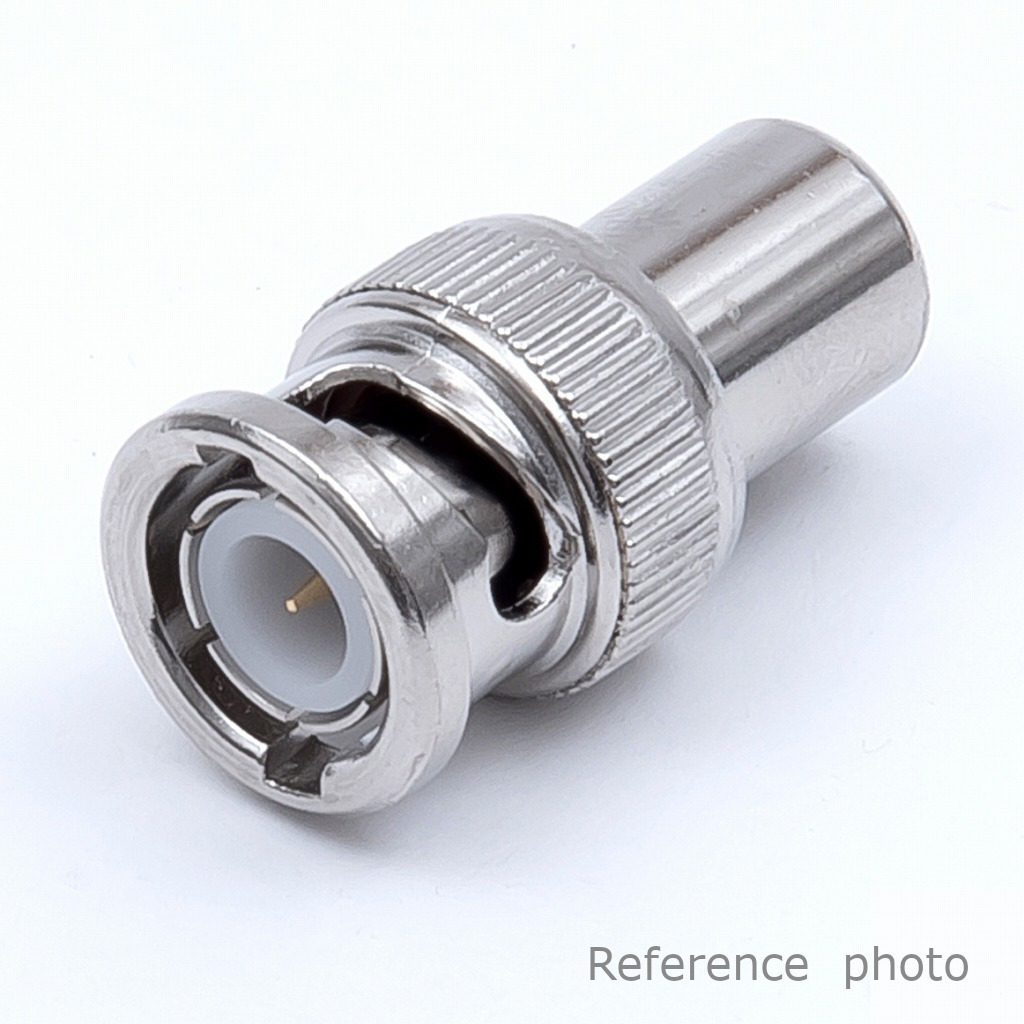

Same model may have multiple batches, images only for reference.
BNCP50TD3G-1W TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BNCP50TD3G-1W

Part No BNCP50TD3G-1W
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Terminators
Description an BNC Terminator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 3GHz, and an excellent V.S.W.R 1.2(Max.) at DC~3 GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating. Rated Power is 1W.
Datasheet
BNCP50TD3G-1W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Connector Style BNC
Connector Type Plug, Male Pin
Frequency - Max 3GHz
Impedance 50 Ohms
Mounting Type Free Hanging, Cap
Body Finish Nickel
Contact Material Phosphor Bronze
Contact Finish Gold
Ultra Librarian 3D Model Ultra Librarian BNCP50TD3G-1W CAD Model
