BNC-274LR TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

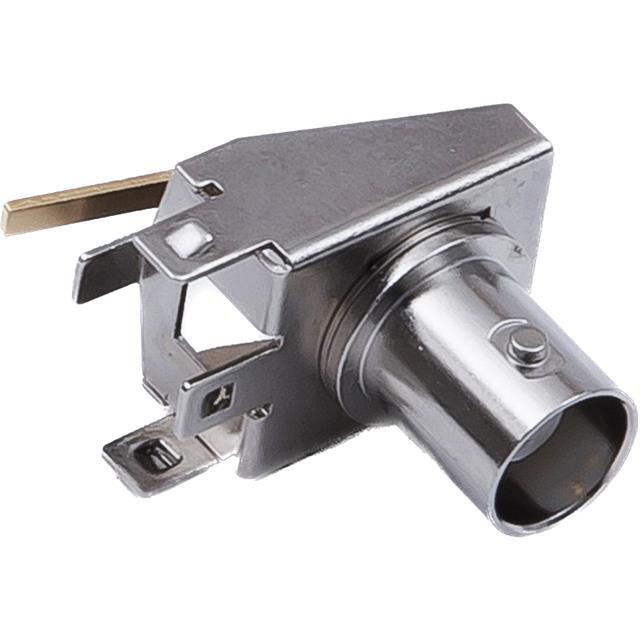

BNC-274LR

Part No BNC-274LR
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Assemblies
Description BNC Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
Datasheet
BNC-274LR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohms
Mounting Type Through Hole, Right Angle
Fastening Type Bayonet Lock
Frequency - Max 300MHz
Number of Ports 1
Housing Color Silver
Center Contact Material Phosphor Bronze
Ultra Librarian 3D Model Ultra Librarian BNC-274LR CAD Model
