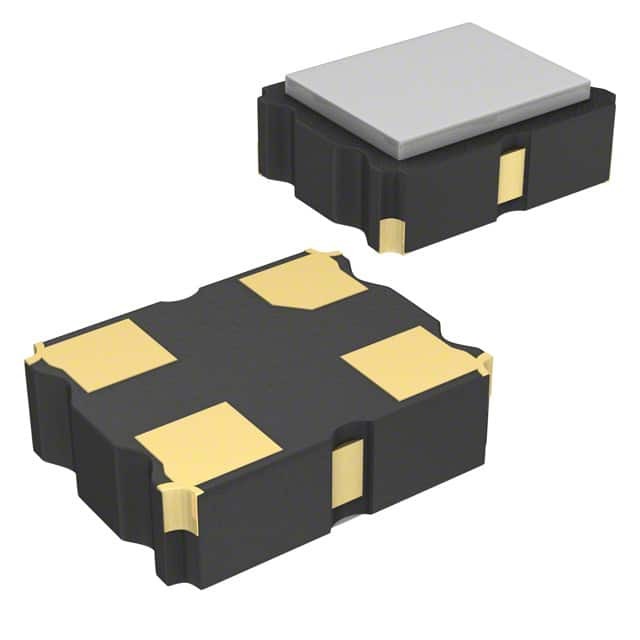

Same model may have multiple batches, images only for reference.
AW-11.2896MBE-T
Same model may have multiple batches, images only for reference.

AW-11.2896MBE-T

Part No AW-11.2896MBE-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Description XTAL OSC XO 11.2896MHZ CMOS SMD
Datasheet
AW-11.2896MBE-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr TXC CORPORATION
Series AW
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 11.2896 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 15mA
Ratings AEC-Q100
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 849504-AW-11.2896MBE-T
Ultra Librarian 3D Model Ultra Librarian AW-11.2896MBE-T CAD Model

Description

The 849504-AW-11.2896MBE-T is a XO (Standard) Oscillator from the AW series of oscillators. It is manufactured by TXC CORPORATION.

  • Frequency: 11.2896 MHz
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.035" (0.90mm)
  • Mounting Type: Surface mount
  • Frequency Stability: ±50ppm
  • Supply Voltage: 3.3V
  • Supply Current: 15mA (Maximum)
  • Package: 4-SMD, no lead
  • Temperature Range: -40°C to 85°C
  • Market Status: Active
