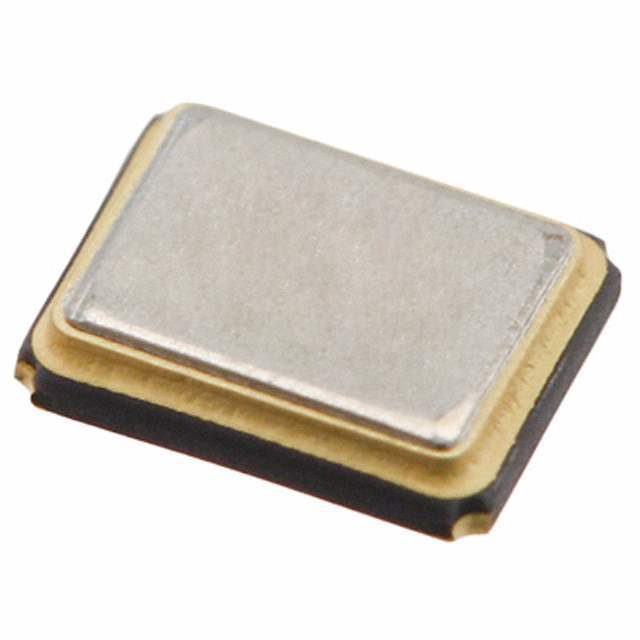

Same model may have multiple batches, images only for reference.
AM-12.000MAGE-T TXC CORPORATION
Same model may have multiple batches, images only for reference.

AM-12.000MAGE-T

Part No AM-12.000MAGE-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 12.0000MHZ 12PF SMD
Datasheet
AM-12.000MAGE-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1205928-AM-12.000MAGE-T
Manufacturer TXC CORPORATION
Category Crystals, Oscillators, Resonators- Crystals
Series AM
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Type MHz Crystal
Frequency 12 MHz
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Ultra Librarian 3D Model Ultra Librarian AM-12.000MAGE-T CAD Model

Description

Features
. Reliable seam sealed ceramic package.
. Wide operating temperature range.
. Superior performance and stringent reliability in harsh environment.
. Application: TPMS, ECM, ABS and sensor modules.
. Compact size.
. RoHS Compliant/ Pb Free.
